purecomps::water Class Reference

#include <components.h>

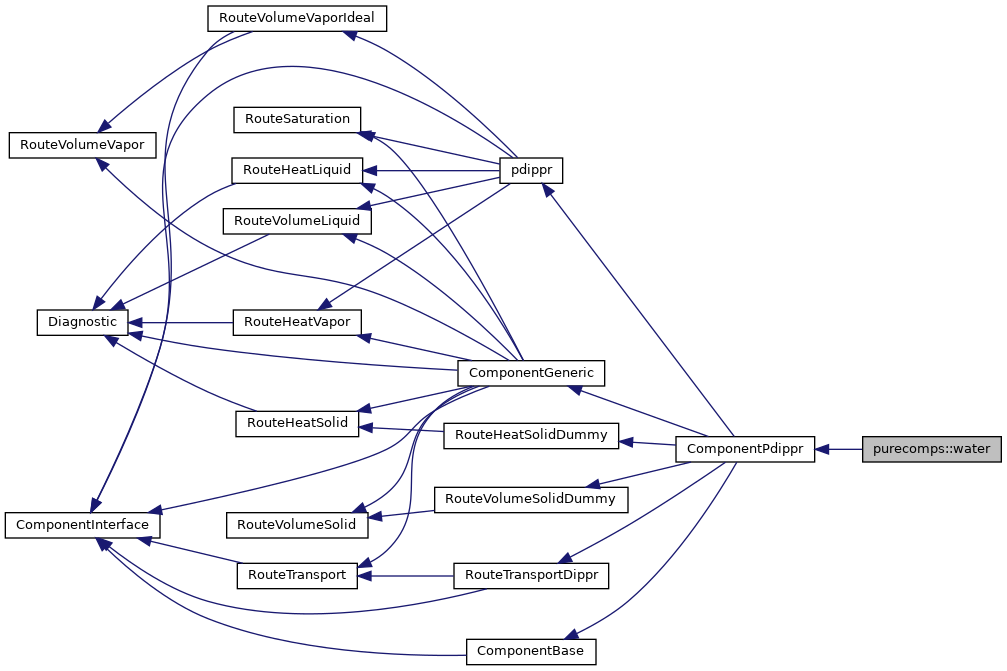

Inheritance diagram for purecomps::water:

Public Member Functions

 water (std::string name="H2O")

- Public Member Functions inherited from ComponentPdippr
 ComponentPdippr (std::string n, const Value &mw, const Value &Pc, const Value &Tc, const Value &rhoc, const Value &diffvol, const Value &vb, const Value &dh0, const Value &dg0, const Value &dhvldp1, const Value &zc, const Value &omega, ParameterAntoine antoine, cpig_parameter cpig, dnldip_parameter dnldip, kldip_parameter kldip, kvdip_parameter kvdip, muldip_parameter muldip, muvdip_parameter muvdip, sigdip_parameter sigdip, ParameterHenry henry=0)
 use RouteHeatVaporDippr and RouteVolumeLiquidDippr More...

 ComponentPdippr (std::string n, const Value &mw, const Value &Pc, const Value &Tc, const Value &rhoc, const Value &diffvol, const Value &vb, const Value &dh0, const Value &dg0, const Value &dhvldp1, const Value &zc, const Value &omega, ParameterAntoine antoine, ParameterVolp volp, dnldip_parameter dnldip, kldip_parameter kldip, kvdip_parameter kvdip, muldip_parameter muldip, muvdip_parameter muvdip, sigdip_parameter sigdip, ParameterHenry henry=0)
 use RouteHeatVaporVolp and RouteVolumeLiquidDippr More...

 ComponentPdippr (std::string n, const Value &mw, const Value &Pc, const Value &Tc, const Value &rhoc, const Value &diffvol, const Value &vb, const Value &dh0, const Value &dg0, const Value &dhvldp1, const Value &zc, const Value &omega, ParameterAntoine antoine, ParameterVolp volp, kldip_parameter kldip, kvdip_parameter kvdip, muldip_parameter muldip, muvdip_parameter muvdip, sigdip_parameter sigdip, ParameterHenry henry=0)
 use RouteHeatVaporVolp and RouteVolumeLiquidWater More...

 ~ComponentPdippr (void)

Value kvli (const Value &T, const Value &P) override

bool isSolid (void) override

bool isGas (void) override

- Public Member Functions inherited from ComponentGeneric
 ComponentGeneric (std::string name)

virtual ~ComponentGeneric (void)

const std::string & name (void) const

int id (void) const

void setid (int idd)

virtual Value kvli (const Value &T, const Value &P)

virtual bool isSolid (void)=0

virtual bool isGas (void)

- Public Member Functions inherited from Diagnostic
 Diagnostic (void)

void setVerbosity (int verbosity)
 sets the verbosity level for this instance More...

int verbosity (void) const

virtual const ValueMW (void) const =0

virtual const ValuePc (void) const =0

virtual const ValueTc (void) const =0

virtual const Value Vc (void) const =0

virtual const ValueZc (void) const =0

virtual const Valueomega (void) const =0

virtual const Valuediffvol (void) const =0

virtual const Valuevb (void) const =0

virtual const Valuedh0 (void) const =0

virtual const Valuedg0 (void) const =0

- Public Member Functions inherited from RouteSaturation
 RouteSaturation (void)

virtual ~RouteSaturation (void)

virtual Value psat (const Value &T, double *derT=nullptr, double *der2T=nullptr)=0
 Vapour pressure of saturation. More...

virtual Value dhvl (const Value &T, double *derT=nullptr)=0
 Vapour-Liquid enthalpy difference. More...

- Public Member Functions inherited from RouteHeatVapor
 RouteHeatVapor (void)

virtual ~RouteHeatVapor (void)

virtual Value hv (const Value &T, const Value &P)=0
 Molar vapor enthalpy, J/kmol. More...

virtual Value sv (const Value &T, const Value &P)=0
 Molar vapor entropy, J/kmol/K. More...

Value gv (const Value &T, const Value &P)
 Molar vapor Gibbs free energy, J/kmol. More...

virtual Value cpv (const Value &T, const Value &P)=0
 Molar vapor cp, J/kmol/K. More...

- Public Member Functions inherited from RouteHeatLiquid
 RouteHeatLiquid (void)

virtual ~RouteHeatLiquid (void)

virtual Value hl (const Value &T, const Value &P)=0
 Molar liquid enthalpy, J/kmol. More...

virtual Value sl (const Value &T, const Value &P)=0
 Molar liquid entropy, J/kmol/K. More...

Value gl (const Value &T, const Value &P)
 Molar liquid Gibbs free energy, J/kmol. More...

virtual Value cpl (const Value &T, const Value &P)=0
 Molar liquid cp, J/kmol/K. More...

- Public Member Functions inherited from RouteHeatSolid
 RouteHeatSolid (void)

virtual ~RouteHeatSolid (void)

virtual Value hs (const Value &T, const Value &P)=0
 Molar solid enthalpy, J/kmol. More...

virtual Value ss (const Value &T, const Value &P)=0
 Molar solid entropy, J/kmol/K. More...

Value gs (const Value &T, const Value &P)
 Molar solid Gibbs free energy, J/kmol. More...

virtual Value cps (const Value &T, const Value &P)=0
 Molar solid cp, J/kmol/K. More...

- Public Member Functions inherited from RouteTransport
 RouteTransport (void)

virtual ~RouteTransport (void)

virtual Value muv (const Value &T, const Value &P)=0
 Vapour viscosity. More...

virtual Value mul (const Value &T)=0
 Liquid viscosity. More...

virtual Value kv (const Value &T, const Value &P)=0
 Vapour thermal conductivity. More...

virtual Value kl (const Value &T)=0
 Liquid thermal conductivity. More...

virtual Value sigma (const Value &T)=0
 Liquid surface tension. More...

Value DG (const Value &T, const Value &P, const Value &mixMW, const Value &mixDiffvol)
 Gas diffusivity. More...

Value DL (const Value &T)
 Liquid diffusivity. More...

- Public Member Functions inherited from RouteVolumeVapor
 RouteVolumeVapor (void)

virtual ~RouteVolumeVapor (void)

virtual double p (const double rho, const double T, double *derRho=nullptr, double *derT=nullptr)=0
 Vapor pressure, Pa. Requires the actual implementation of the volumetric properties. More...

Value p (const Value &rrho, const Value &TT)
 Vapor pressure, Pa. More...

virtual Value rhov (const Value &T, const Value &P, double *derT=nullptr, double *derP=nullptr)=0
 Molar vapor density, kmol/m3. More...

- Public Member Functions inherited from RouteVolumeLiquid
 RouteVolumeLiquid (void)

virtual ~RouteVolumeLiquid (void)

virtual Value rhol (const Value &T, const Value &P, double *derT=nullptr)=0
 Molar liquid density, kmol/m3. More...

virtual Value rhos (const Value &T, const Value &P, double *derT=nullptr)=0
 Molar solid density, kmol/m3. More...

- Public Member Functions inherited from ComponentBase
 ComponentBase (const Value &mw, const Value &Pc, const Value &Tc, const Value &rhoc, const Value &diffvol, const Value &vb, const Value &dh0, const Value &dg0, const Value &zc, const Value &omega)
 preferred constructor More...

 ComponentBase (const Value &mw)
 dummy constructor will set remaining parameters to dummy values More...

virtual ~ComponentBase (void)

const ValueMW (void) const override

const ValuePc (void) const override

const ValueTc (void) const override

const ValueZc (void) const override

const Value Vc (void) const override

const Valueomega (void) const override

const Valuediffvol (void) const override

const Valuevb (void) const override

const Valuedh0 (void) const override

const Valuedg0 (void) const override

- Public Member Functions inherited from RouteHeatSolidDummy
 RouteHeatSolidDummy (void)

Value hs (const Value &T, const Value &) override
 Dummy solid enthalpy. More...

Value ss (const Value &, const Value &) override
 Dummy solid entropy. More...

Value cps (const Value &, const Value &) override
 Dummy solid cp. More...

- Public Member Functions inherited from RouteVolumeSolidDummy
 RouteVolumeSolidDummy (void)

Value rhos (const Value &, const Value &, double *=nullptr) override
 Molar solid density, kmol/m3. More...

- Public Member Functions inherited from pdippr
 pdippr (const Value &dhvldp1, ParameterAntoine antoine, cpig_parameter cpig, dnldip_parameter dnldip)
 use RouteHeatVaporDippr and RouteVolumeLiquidDippr More...

 pdippr (const Value &dhvldp1, ParameterAntoine antoine, ParameterVolp volp, dnldip_parameter dnldip)
 use RouteHeatVaporVolp and RouteVolumeLiquidDippr More...

 pdippr (const Value &dhvldp1, ParameterAntoine antoine, ParameterVolp volp)
 use RouteHeatVaporVolp and RouteVolumeLiquidWater More...

 ~pdippr (void)

Value psat (const Value &T, double *derT=nullptr, double *der2T=nullptr) override
 Vapour pressure of saturation. More...

Value hv (const Value &T, const Value &P) override
 Molar vapor enthalpy, J/kmol. More...

Value sv (const Value &T, const Value &P) override
 Molar vapor entropy, J/kmol/K. More...

Value cpv (const Value &T, const Value &P) override
 Molar vapor cp, J/kmol/K. More...

Value rhol (const Value &T, const Value &P, double *derT=nullptr) override
 Molar liquid density, kmol/m3. More...

Value dhvl (const Value &TT, double *derT=nullptr) override
 Vapour-Liquid enthalpy difference. More...

Value hl (const Value &TT, const Value &P) override
 Molar liquid enthalpy, J/kmol. More...

Value sl (const Value &TT, const Value &PP) override
 Molar liquid entropy, J/kmol/K. More...

Value cpl (const Value &TT, const Value &P) override
 Molar liquid cp, J/kmol/K. More...

- Public Member Functions inherited from RouteVolumeVaporIdeal
 RouteVolumeVaporIdeal (void)

double p (const double rho, const double T, double *derRho=nullptr, double *derT=nullptr) override
 Vapor pressure, Pa. Requires the actual implementation of the volumetric properties. More...

Value rhov (const Value &T, const Value &P, double *derT=nullptr, double *derP=nullptr) override
 Molar vapor density, kmol/m3. More...

- Public Member Functions inherited from RouteTransportDippr
 RouteTransportDippr (kldip_parameter kldip, kvdip_parameter kvdip, muldip_parameter muldip, muvdip_parameter muvdip, sigdip_parameter sigdip)

Value muv (const Value &TT, const Value &P) override
 Vapour viscosity. More...

Value mul (const Value &TT) override
 Liquid viscosity. More...

Value kv (const Value &TT, const Value &P) override
 Vapour thermal conductivity. More...

Value kl (const Value &TT) override
 Liquid thermal conductivity. More...

Value sigma (const Value &TT) override
 Liquid surface tension. More...


Additional Inherited Members

- Public Attributes inherited from RouteVolumeSolidDummy
double rhos_

- Protected Member Functions inherited from Diagnostic
virtual ~Diagnostic ()=default

- Protected Member Functions inherited from ComponentInterface
virtual ~ComponentInterface ()=default

- Protected Member Functions inherited from RouteTransport
 RouteTransport (const RouteTransport &)
 not implemented, making class non copyable More...

RouteTransportoperator= (const RouteTransport &)
 not implemented, making class non copyable More...

- Protected Member Functions inherited from RouteVolumeSolid
virtual ~RouteVolumeSolid ()=default

- Protected Member Functions inherited from RouteVolumeSolidDummy
virtual ~RouteVolumeSolidDummy ()=default

- Protected Attributes inherited from Diagnostic
int verbosityInstance

- Protected Attributes inherited from ComponentBase
Value MW_
 molecular weight More...

Value Pc_
 critical pressure, Pa More...

Value Tc_
 critical temperature, K More...

Value rhoc_
 molar density at the critical point, kmol/m3 More...

Value diffvol_
 molar diffusivity parameter More...

Value vb_
 molar volume at boiling point, m3/kmol More...

Value zc_
 critical compressibility factor More...

Value dh0_
 enthalpy of formation in the isIdeal gas phase at 1 atm 298.15 K, J/kmol More...

Value dg0_
 Gibbs free energy of formation in the isIdeal gas phase at 1 atm 298.15 K, J/kmol. More...

Value omega_
 acentric factor More...

- Protected Attributes inherited from pdippr
ParameterAntoine antoine_

double dhvldp1_

RouteHeatVaporhvClass_
 pointer to the vapor thermal properties implementation model More...

RouteVolumeLiquidelClass_
 pointer to the liquid volumetric properties implementation model More...


Constructor & Destructor Documentation

◆ water()

purecomps::water::water ( std::string  name = "H2O")
explicit

The documentation for this class was generated from the following file:
