RouteHeatSolid Class Reference

#include <RouteHeatSolid.h>

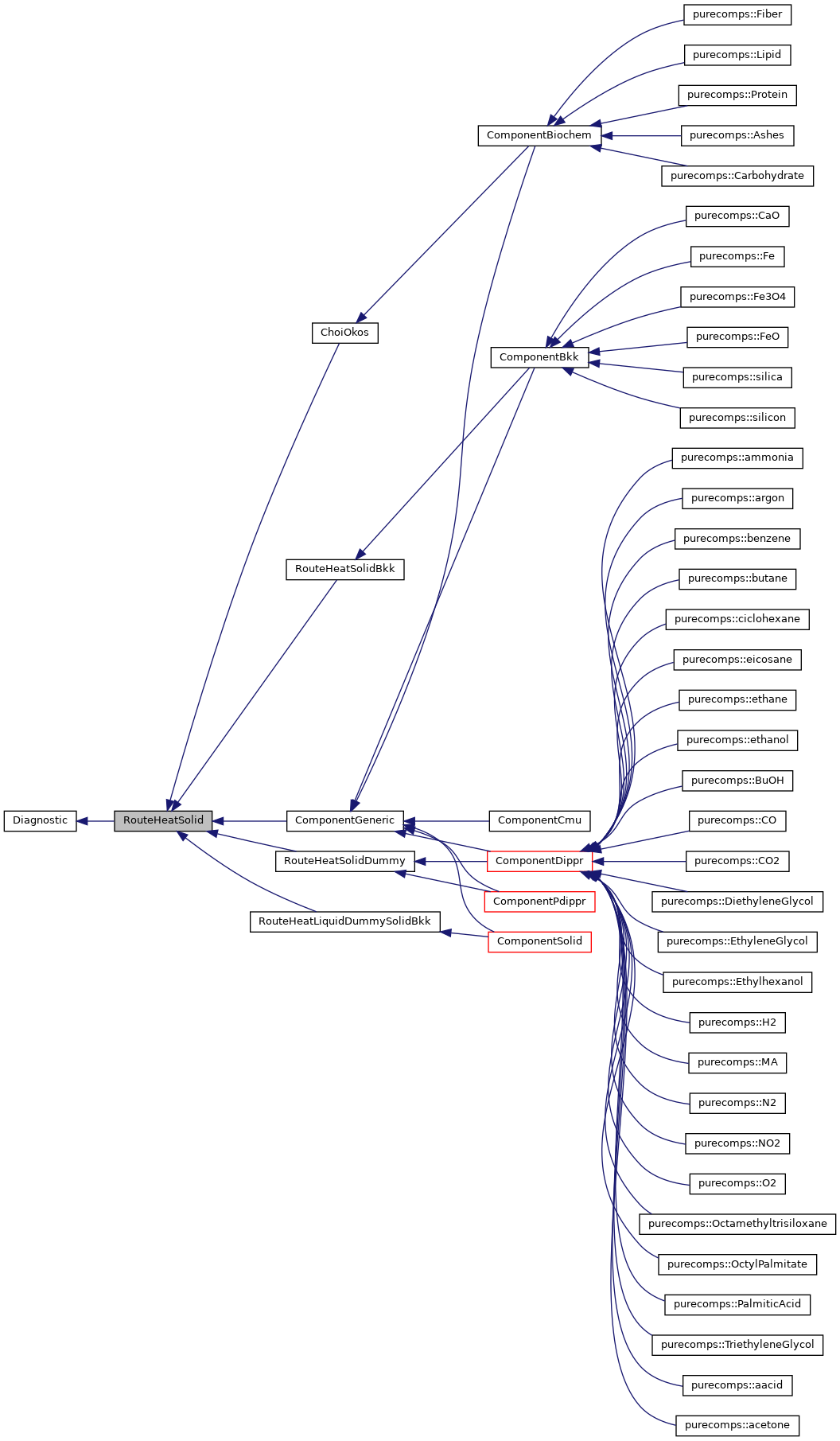

Inheritance diagram for RouteHeatSolid:

Public Member Functions
	RouteHeatSolid (void)
virtual	~RouteHeatSolid (void)
virtual Value	hs (const Value &T, const Value &P)=0
	Molar solid enthalpy, J/kmol. More...
virtual Value	ss (const Value &T, const Value &P)=0
	Molar solid entropy, J/kmol/K. More...
Value	gs (const Value &T, const Value &P)
	Molar solid Gibbs free energy, J/kmol. More...
virtual Value	cps (const Value &T, const Value &P)=0
	Molar solid cp, J/kmol/K. More...
Public Member Functions inherited from Diagnostic
	Diagnostic (void)
void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...
int	verbosity (void) const

Additional Inherited Members
Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default
Protected Attributes inherited from Diagnostic
int	verbosityInstance

Detailed Description

Abstract interface for the thermal properties of solids route

#include <libpf/components/RouteHeatSolid.h>

Remarks

Warning

Thread safe:

Extendable:

Platform dependencies:

Constructor & Destructor Documentation

RouteHeatSolid()

RouteHeatSolid::RouteHeatSolid ( void  )

inline

~RouteHeatSolid()

virtual RouteHeatSolid::~RouteHeatSolid ( void  )

inlinevirtual

Member Function Documentation

cps()

virtual Value RouteHeatSolid::cps ( const Value &  T, const Value &  P  )

pure virtual

Molar solid cp, J/kmol/K.

Implemented in RouteHeatSolidDummy, RouteHeatLiquidDummySolidBkk, RouteHeatSolidBkk, and ChoiOkos.

gs()

Value RouteHeatSolid::gs	(	const Value &	T,
		const Value &	P
	)

Molar solid Gibbs free energy, J/kmol.

hs()

virtual Value RouteHeatSolid::hs ( const Value &  T, const Value &  P  )

pure virtual

Molar solid enthalpy, J/kmol.

Implemented in RouteHeatSolidDummy, RouteHeatLiquidDummySolidBkk, RouteHeatSolidBkk, and ChoiOkos.

ss()

virtual Value RouteHeatSolid::ss ( const Value &  T, const Value &  P  )

pure virtual

Molar solid entropy, J/kmol/K.

Implemented in RouteHeatSolidDummy, RouteHeatLiquidDummySolidBkk, RouteHeatSolidBkk, and ChoiOkos.

---

The documentation for this class was generated from the following file:

• RouteHeatSolid.h
