MultiCompressorIntercooled< N > Class Template Reference

#include <MultiCompressorIntercooled.h>

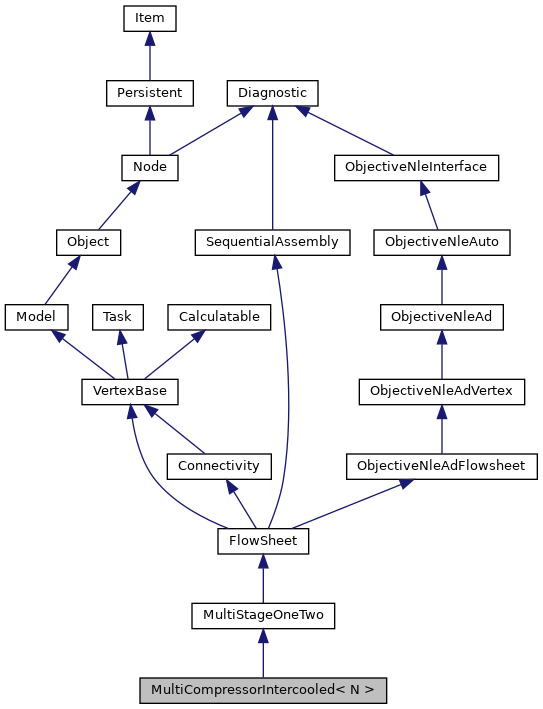

Inheritance diagram for MultiCompressorIntercooled< N >:

Public Member Functions

 MultiCompressorIntercooled (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 QUANTITY (T, "Intercooler temperature", 100.0+273.15, "K")

 QUANTITY (P, "Discharge pressure", 10.0, "barg")

 QUANTITY (We, "Total electrical power requirement", 0.0, "W")

 QUANTITY (duty, "Sum of intercooler duties", 0.0, "W")

 QUANTITY (cr, "Compression ratio", 1.0, "")

 QUANTITY (theta, "Isentropic yield of all stages", 1.0, "")

 QUANTITY (etaM, "Mechanical efficiency of all stages", 0.9, "")

 QUANTITY (etaE, "Electrical efficiency of all stages", 0.9, "")

void setup (void) override
 performs initializations required immediately before solution More...

const std::string & type (void) const override

void makeUserEquations (std::list< Assignment * >::iterator &) override
 user will code here "specification" equation list for sequential calculation More...

void pre (Calculatable::SolutionMode solutionMode, int level) override

void post (Calculatable::SolutionMode solutionMode, int level) override

- Public Member Functions inherited from MultiStageOneTwo
 MultiStageOneTwo (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 ~MultiStageOneTwo (void)

const std::string & type (void) const override

 INTEGER (nStage, "Number of stages", 0)

 STRING (pressureoption, "Mechanical equilibrium setting equilibrium or separate", "equilibrium")

 STRING (typeT, "the type of the model which sits on the Vertexes", "")

 STRING (typeU, "the type of the model which sits on the inflow outflow Edges", "")

 STRING (typeV, "the type of the model which sits on the outflow only Edges", "")

std::string stagename (int i)

std::string streamname (int j, int i)

void makeUserEquations (std::list< Assignment * >::iterator &) override
 user will code here "specification" equation list for sequential calculation More...

void setup (void) override
 performs initializations required immediately before solution More...

int sequential (void) override

- Public Member Functions inherited from FlowSheet
 FlowSheet (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 ~FlowSheet (void)

 INTEGERVECTOR (enableAssignment, "Enable Assignment", 0, 0)

 INTEGER (NITER, "Number of iterations for flowsheet cuts convergence", -1)

 QUANTITY (seqTol, "Tolerance for sequential modular mode", 1e-6, "")

 QUANTITY (seqErr, "Current error for sequential modular mode", 1e-6, "")

void addCut (std::string s)
 makes the stream with tag s a cut stream, allocates a new stream with tag s+"bis" with same type as s, reconnects More...

void removeCut (std::string s)
 deletes the cut stream with tag s+"bis" and reconnects stream s as required More...

void restoreCuts (void)
 recursively restore cut streams More...

void calculate (int level=0) override

void go (Calculatable::SolutionMode solutionMode, int level) override final

virtual void pre (Calculatable::SolutionMode solutionMode, int level)=0

virtual void post (Calculatable::SolutionMode solutionMode, int level)=0

void addUnit (const std::string &type, Libpf::Persistency::Defaults defaults)

void addStream (const std::string &type, Libpf::Persistency::Defaults defaults, const std::string &from, const std::string &port_from, const std::string &to, const std::string &port_to)
 non-template variant, see #236 More...

void makeSequentialAssembly (std::list< Assignment * >::iterator &p)
 build equations associated with sequential mode solution (cut streams) More...

virtual void makeUserEquations (std::list< Assignment * >::iterator &p)=0
 user will code here "specification" equation list for sequential calculation More...

bool isAssignmentActive (std::list< Assignment * >::iterator &q) const override
 will be implemented in Model-aware derived class More...

virtual int sequential (void)

void setMinSequential (int minSequential)

virtual bool supportsSimultaneous (void)
 returns true if flowsheet can be solved in simultaneous mode; defaults to true More...

ObjectiveNleAdobjectiveFunction (void) override
 returns a pointer to the model's objective function More...

SolverNleInterfacesolver (void)

int calculateResidualsLocal (void) override
 compute residuals and store into local vector y_; must be provided by implementations More...

void setup_of (void) override
 set up problem size, pick up objective functions, assemble unknowns, residuals and scalers list More...

void initializeNonPersistents (void) override
 estimates hidden, non-persistent unknowns from the current results More...

void setup (void) override
 performs initializations required immediately before solution More...

void check_inout (void)
 Check flowsheet-level in- and out-flows. More...

bool check (void) override
 Check connections in Edges and Vertexes. More...

Libpf::Utility::Category category (void) const override
 return model Category More...

void printSvg (const char *fileName, bool tiny, bool raster, int offset) override

Value massBalance (void) const override

Value energyBalance (void) const override

void printPluggable (void) const
 diagnostic print More...

int inletIdFromPort (const std::string &port) const

const std::string & inletTag (unsigned int i) const

int inletConnection (const std::string &tag) const

bool isInletConnection (const std::string &tag) const

int outletIdFromPort (const std::string &port) const

const std::string & outletTag (unsigned int i) const

int outletConnection (const std::string &tag) const

bool isOutletConnection (const std::string &tag) const

bool isDag (void) const
 Returns true if the graph is a Directed Acyclic Graph (DAG) More...

void printDot (const char *s, int id=0) const

void printGraph (std::ostream &os) const
 print Vertex and Edge lists to os More...

- Public Member Functions inherited from VertexBase
 VertexBase (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 QUANTITY (cmdot, "Cumulative mass flow inlet minus outlet", one, "kg/s")

 QUANTITY (mdotin, "inlet mass flow", one, "kg/s")

 QUANTITY (mdotout, "outlet mass flow", one, "kg/s")

 QUANTITY (cduty, "Cumulative enthalpy flow inlet minus outlet", one, "W")

virtual void attach (EdgeBase &edge, std::string &port)

virtual void detach (std::string port)
 Detaches the edge from the port with name "port". More...

virtual bool check (void)=0
 Checks the connectivity for this instance of VertexBase and returns true if something is out of order. More...

void translate (std::string &s)
 translates port name from user-friendly synonyms into the canonical form, or leaves unchanged More...

virtual void checkBalance (void)
 call calculateBalance, then issue error/warning if required More...

virtual void calculateBalance (void)=0
 calculate cmdot, mdotin, mdotout, mdotcomps[] and cduty based on inlet/outlet streams More...

virtual Value massBalance (void) const
 return should-be net mass balance of unit (inlet-outlet), defaults to zero and must be overridden if required More...

virtual Value energyBalance (void) const
 return should-be net energy balance of unit (inlet-outlet), defaults to zero and must be overridden if required More...

Libpf::Utility::Category category (void) const override
 return model Category More...

void printSvg (const char *fileName, bool tiny, bool raster, int offset) override

virtual PortLocation locationFromPort (std::string port) const

PortLocation locationFromEdge (std::string edgeTag) const

const std::string & edgeFromPort (const std::string &port) const

const std::string & portFromEdge (const std::string &edgeTag) const

- Public Member Functions inherited from Model
 Model (Libpf::Persistency::Defaults defaults, uint32_t id, Persistency *persistency, Persistent *parent, Persistent *root)

 INTEGER (nCalculations, "Number of times the model has been calculated", 0)

 STRINGVECTOR (errors, "Errors from the last computation", 0, "")

 STRINGVECTOR (warnings, "Warnings from the last computation", 0, "")

bool isPristine (void) const

void unSetInput (void)
 wipes out all tags marked as inputs More...

void reportMessages (void)
 recursively collect status of all sub-objects and report to parent More...

void resetErrors (void)

void setWarning (std::string s)
 send new warning message to local queue More...

void setError (std::string s)
 send new error message to local queue More...

void reportWarning (std::string s)
 propagate warning message from sub-object to local queue More...

void reportError (std::string s)
 propagate error message from sub-object to local queue More...

void setCalculated (void)
 increments nCalculations counter and unsets pristinity More...

void setPristineRecursive (void)
 force next calculation to restart as if the model had never been calculated during this runtime session, also for all contained objects More...

void setPristine (void)
 force next calculation to restart as if the model had never been calculated during this runtime session More...

void setRunTime (double t)
 set the run time More...

virtual Libpf::Utility::Category category (void) const =0
 return model Category More...

virtual void calculate (int level=0)=0

virtual void setup (void)=0
 performs initializations required immediately before solution More...

virtual int maximumIterations (void)
 returns default maximum iterations for main computation; defaults to 200 More...

virtual void initializeNonPersistents (void)=0
 estimates hidden, non-persistent unknowns from the current results More...

virtual ObjectiveNleAdobjectiveFunction (void)=0
 returns a pointer to the model's objective function More...

std::ostream & print (std::ostream &os, bool strings, bool quantities, bool integers, bool recursive) const

std::ostream & printFull (std::ostream &) const
 print the model quantities, including derivative info, in text format to os More...

void printHtml (const char *dir) const

virtual void printSvg (const char *fileName, bool tiny, bool raster, int offset)

void printSvgAll (const char *dir, bool tiny, bool raster, int offset, std::vector< std::string > &list)
 Recursively output the model and all descendants in SVG format as separate id.SVG files in the directory dir. More...

virtual void printXml (const char *dir, Model *precedingSibling, Model *followingSibling) const

void printXmlToc (std::ofstream &toc, int indent) const

void printOds (std::ofstream &ods) const

- Public Member Functions inherited from Object
 Object (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

Libpf::Persistency::Defaults defaults (void) const

std::ostream & printJson (std::ostream &os, int level=0) const override
 print Node in JSON format More...

void readVariables (Persistency *persistency) override
 reads Q, QV and QM from persistency More...

void readParameters (Persistency *persistency) override
 reads I, IV, S and SV from persistency More...

Nodeoperator= (const Node &) override
 copy assignment operator More...

Nodeoperator= (Node &&other) override
 move assignment More...

 ~Object (void)

const std::string & type (void) const override

Objectat (const std::string &fullRelativeTag)

const Objectat (const std::string &fullRelativeTag) const

Objectat (const std::string &fullRelativeTag, int index)

const ValueQ (const std::string &tag) const

const ValueQ (const std::string &tag, int index) const

const ValueQ (const std::string &tag, int row, int column) const

ValueQ (const std::string &tag)

ValueQ (const std::string &tag, int index)

ValueQ (const std::string &tag, int row, int column)

const ValueQ (const std::string &tag, std::string componentName) const

ValueQ (const std::string &tag, std::string componentName)

const ValueQ (const std::string &tag, int index, std::string componentName) const

ValueQ (const std::string &tag, int index, std::string componentName)

const int & I (const std::string &tag) const

const int & I (const std::string &tag, int index) const

int & I (const std::string &tag)

int & I (const std::string &tag, int index)

const std::string & S (const std::string &tag) const

const std::string & S (const std::string &tag, int index) const

std::string & S (const std::string &tag)

std::string & S (const std::string &tag, int index)

bool operator!= (const Object &rhs) const

bool operator== (const Object &rhs) const

bool compareParameters (const Object &rhs) const

bool existsI (const std::string &tag) const

bool existsS (const std::string &tag) const

bool existsQ (const std::string &tag) const

void push (void) const
 store the current status of the object and all its sub-objects in the last-in-first-out queue of real variables values More...

void pop (void)
 restore the status of the object and all its sub-objects from the last-in-first-out queue of real variables values More...

void clear (void) const
 clear the last-in-first-out queue of real variables values used for storing and retrieving the status More...

const RangeQuantities quantities (void)

const ConstRangeQuantities quantities (void) const

- Public Member Functions inherited from Node
 Node (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 Node (const Node &other)
 copy constructor More...

 Node (Node &&other)
 move constructor More...

virtual std::unique_ptr< Nodeclone (void) const

virtual Nodeoperator= (const Node &other)
 copy assignment operator copies all elements but root which is set to nullptr More...

virtual Nodeoperator= (Node &&other)
 move assignment More...

 ~Node ()

int insert (Persistency *persistency) const override

int update (Persistency *persistency) const override

void restore (Persistency *persistency) override

void remove (Persistency *persistency) const override

uint32_t rootId (void) const override

uint32_t range (void) const override

uint32_t getId (void) override
 returns the next available id and increments the internal counter More...

const std::string & type (void) const override

virtual std::ostream & printJson (std::ostream &os, int level=0) const
 print Node in JSON format More...

NodeaddChild (std::string type, uint32_t id, Persistency *persistency)

NodeaddChild (std::string type, Libpf::Persistency::Defaults defaults)

NodeaddChild (const Node &child)

NodeaddChild (std::unique_ptr< Node > child)

std::unique_ptr< Nodeprune (const std::string &tag)

const Nodechild (const std::string &tag) const

Nodeat (const std::string &fullRelativeTag)

const Nodeat (const std::string &fullRelativeTag) const

uint32_t descendants (void) const

Persistentroot (void) const

void renameChild (const std::string &oldName, const std::string &newName)

bool existsChild (std::string tag) const

bool exists (uint32_t id)

Nodesearch (uint32_t id)

bool operator!= (const Node &rhs) const

bool operator== (const Node &rhs) const

virtual void readVariables (Persistency *)
 reads Q, QV and QM from persistency More...

virtual void readParameters (Persistency *)
 reads I, IV, S and SV from persistency More...

bool isRestored (void) const
 return whether the Node has just been retrieved from persistent storage More...

void setIcon (std::string icon, double width, double height)

bool hasIcon (void) const

std::string iconName (bool raster) const

double iconWidth (void) const

double iconHeight (void) const

const Range children (void)

const ConstRange children (void) const

- Public Member Functions inherited from Persistent
 Persistent (const std::string &tag, const std::string &description, Persistent *parent, uint32_t id)
 main constructor More...

 Persistent (const Persistent &)
 copy constructor More...

Persistentoperator= (const Persistent &)
 copy assignment More...

 Persistent (Persistent &&other)
 move constructor More...

Persistentoperator= (Persistent &&other)
 move assignment More...

 ~Persistent (void)

uint32_t id (void) const

std::string uuid (void) const

uint32_t parentId (void) const

virtual uint32_t rootId (void) const =0

virtual uint32_t range (void) const =0

virtual uint32_t getId (void)=0
 returns the next available id and increments the internal counter More...

double created_at (void) const

double updated_at (void) const

void updated_at (double u) const

virtual int insert (Persistency *persistency) const =0

virtual int update (Persistency *persistency) const =0

virtual void restore (Persistency *persistency)=0

virtual void remove (Persistency *persistency) const =0

- Public Member Functions inherited from Item
 Item (const Item &other)
 copy constructor copies all elements but parent which is set to nullptr More...

Itemoperator= (const Item &other)
 copy assignment operator copies all elements but parent which is set to nullptr More...

 Item (const std::string &tag, const std::string &description, Persistent *parent)

 Item (Item &&other)
 move constructor More...

Itemoperator= (Item &&other)
 move assignment operator More...

virtual ~Item ()

const std::string & tag () const

const std::string & description () const

std::string fullTag () const

const Persistentparent () const

virtual const std::string & type () const =0

void setTag (const std::string &tag)

void setDescription (const std::string &description)

void setWideTag (const std::wstring &tag)
 wide-character variant, More...

void setWideDescription (const std::wstring &description)
 wide-character variant, More...

bool operator!= (const Item &rhs) const

bool operator== (const Item &rhs) const

- Public Member Functions inherited from Diagnostic
 Diagnostic (void)

void setVerbosity (int verbosity)
 sets the verbosity level for this instance More...

int verbosity (void) const

- Public Member Functions inherited from Task
 Task (void)

 ~Task (void)

double cost (void) const

int level (void) const

int core (void) const
 get the core where this task is scheduled or -1 if not yet scheduled More...

double startTime (void) const
 return forecast start time More...

double endTime (void) const
 return forecast end time More...

void setLevel (int l)

void setCore (int c)

double setStartTime (double t)
 sets the start time and returns the end time More...

virtual void go (SolutionMode solutionMode, int level)=0

- Public Member Functions inherited from SequentialAssembly
 SequentialAssembly (void)
 Lifecycle. More...

 ~SequentialAssembly (void)

double deltaseq (void) const

int neqs (void) const
 returns the number of Assignments More...

void wegsteinstep (void)
 Substitutes RHS into *LHSP for all Assignments. More...

void directstep (void)
 Updates *LHSP with RHS using Wegstein accelerated direct substitution for all Assignments. More...

void makeAssignment (std::list< Assignment * >::iterator &p, Value &lhs, Value rhs, std::string tag, std::string rhsstring, int i, Libpf::Utility::ScalingMode sm=Libpf::Utility::ScalingMode::noscaling, double xmin=0.0, double xmax=1.0, Value factor=One)

void addCut (std::string name, Stream *in, Stream *out)

void removeCut (std::string tag)

Assignmentoperator<< (Assignment *ep)
 includes a new Assignment to the corresponding collection More...

void print (void) const

void purgeAss (void)
 delete all equations More...

void setDamping (double d)
 set damping coefficient for direct substitution More...

double damping (void) const
 returns current value of the damping coefficient for direct substitution More...

void setMaxChange (double c)
 set maximum relative step change for direct substitution More...

double maxChange (void) const
 returns current value of maximum relative step change for direct substitution More...

- Public Member Functions inherited from ObjectiveNleAdFlowsheet
 ObjectiveNleAdFlowsheet (std::string t)
 constructor More...

 ~ObjectiveNleAdFlowsheet (void)

- Public Member Functions inherited from ObjectiveNleAdVertex
 ObjectiveNleAdVertex (std::string t)
 constructor More...

void unscalex (double *x) override
 transforms back the vector of scaled variables x by applying the unscaling More...

int calculateResiduals (std::vector< Value > &y, uint32_t offset) override

void operator() (double *, double *, Jacobian *) override
 implements the () operator by calling calculateResidualsLocal and calculateResiduals; overrides ObjectiveNleAd::operator() More...

virtual int calculateResidualsLocal (void)=0
 compute residuals and store into local vector y_; must be provided by implementations More...

virtual void setup_of (void)=0
 setup and resize appropriately internal vectors; must be provided by implementations More...

- Public Member Functions inherited from ObjectiveNleAd
 ObjectiveNleAd (std::string t)
 constructor More...

double xmin (unsigned int i)
 return the lower bound on unknown i More...

double xmax (unsigned int i)
 return the upper bound on unknown i More...

unsigned int size (void) const override
 returns the current size of the problem More...

void scalex (double *x) override
 transforms the vector of "real" variables x by applying the scaling More...

void unscalex (double *x) override
 transforms back the vector of scaled variables x by applying the unscaling More...

void operator() (double *, double *, Jacobian *J) override
 implements the () operator by calling calculateResiduals; derived class may override it More...

void addUnknown (Value *x, Scaler scaler, const std::string &tag)

void changeUnknown (unsigned int i, Value *x, Scaler scaler, const std::string &tag)
 change the i-th unknown More...

void addObjectiveFunction (ObjectiveNleAd &of)
 append the remote objective function More...

- Public Member Functions inherited from ObjectiveNleAuto
 ObjectiveNleAuto (std::string t)
 constructor More...

virtual unsigned int size (void) const
 returns the current size of the problem More...

bool init (double *x)

void setValue (unsigned int i, double x)
 copies the value for the i-th unknown from x in the Value pointed to, without altering the derivatives More...

void copyresults (double *x)
 copies the unknown values from the x vector into the Values pointed to More...

void inactivate (void)
 inactivates all unknowns More...

void clearderivatives (void)
 clears the derivative information for all unknowns without setting to inactive More...

void setActive (unsigned int i)
 activates the i-th unknown More...

void scalex (double *) override
 transforms the vector of "real" variables x by applying the scaling More...

void unscalex (double *x) override
 transforms back the vector of scaled variables x by applying the unscaling More...

void operator() (double *, double *, Jacobian *J) override
 implements the () operator by calling calculateResiduals; derived class may override it More...

void setx (unsigned int i, Value &x)
 sets the i-th unknown to x More...

const Valueunknown (unsigned int i) const
 returns a reference to the i-th unknown More...

const std::string & unknownTag (unsigned int i) const
 returns a reference to the tag of the i-th unknown More...

double xmin (unsigned int i)
 return the lower bound on unknown i More...

double xmax (unsigned int i)
 return the upper bound on unknown i More...

void print (void) const
 lists unknowns More...

const std::string & tagof (void) const
 returns the tag of the instance More...

void settagof (std::string t)
 sets the tag of the instance More...

void appendtagof (const std::string &t)
 appends to the tag of the instance More...

int zero_residuals (std::vector< Value > &y, uint32_t offset)

virtual int calculateResiduals (std::vector< Value > &y, uint32_t offset)=0

void addUnknown (Value *x, const std::string &tag)

void changeUnknown (unsigned int i, Value *x, const std::string &tag)
 change the i-th unknown More...

- Public Member Functions inherited from ObjectiveNleInterface
 ObjectiveNleInterface (void)

virtual void operator() (double *x, double *y, Jacobian *J)=0
 computes the objective function vector y at the point x and optionally the Jacobian J More...

virtual void scalex (double *x)=0
 transforms the vector of "real" variables x by applying the scaling More...

virtual void unscalex (double *x)=0
 transforms back the vector of scaled variables x by applying the unscaling More...

- Public Member Functions inherited from Connectivity
 Connectivity (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 ~Connectivity (void)

 INTEGER (nIn, "Number of connected inlet EdgeBases", 0)
 should not be set directly: use attach instead More...

 INTEGER (nOut, "Number of connected outlet EdgeBases", 0)
 should not be set directly: use attach instead More...

 INTEGER (maxNIn, "Maximum number of connected inlet EdgeBases or -1 for unlimited", -1)

 INTEGER (maxNOut, "Maximum number of connected outlet EdgeBases or -1 for unlimited", -1)

 STRING (constraints, "Used internally to persist connectivity constraints", "")

void attach (EdgeBase &edge, std::string &port) override final

void detach (std::string port) override final
 Detaches the edge from the port with name "port". More...

bool check (void) override

void calculateBalance (void) override
 calculate cmdot, mdotin, mdotout, mdotcomps[] and cduty based on inlet/outlet streams More...

std::string portInlet (int i) const

std::string portOutlet (int i) const

bool isInletConnected (unsigned int i) const

bool isOutletConnected (unsigned int i) const

EdgeBaseinlet (unsigned int i)

EdgeBaseoutlet (unsigned int i)

EdgeBaseedgeFromPort (const std::string &port)

void printConnectivity (void) const
 diagnostic print More...


Static Public Attributes

static const std::string type_

- Static Public Attributes inherited from MultiStageOneTwo
static const std::string type_


Additional Inherited Members

- Public Types inherited from VertexBase
enum  PortLocation { north , south , east , west }

- Public Types inherited from Calculatable
enum  SolutionMode { Null = 0 , sequential , simultaneous , singlePassSimultaneous }

- Public Attributes inherited from MultiStageOneTwo
std::vector< QuantitydeltaP
 Pressure drop in the sense of each stream flow; if pressureoption==equilibrium only deltaP[0] is used and that is Pbottom - Ptop. More...

- Public Attributes inherited from FlowSheet
Libpf::Utility::CutsSolution mode
 Mode used for solving the cuts in the flowsheet. More...

- Public Attributes inherited from VertexBase
std::vector< Quantitymdotcomps
 Cumulative mass flow of each component, inlet - outlet. More...

- Public Attributes inherited from Task
int weight
 for backTrack_ and findCycles More...

- Public Attributes inherited from SequentialAssembly
std::map< std::string, Cut * > cuts_
 collection of cut streams to automatically generate the Assignments converging them More...

std::list< Assignment * > ass_
 collection of Assignments, containing the assembly of explicit equations More...

std::vector< Scaler * > scalers_
 collection of optional scalers for the unknowns More...

- Public Attributes inherited from ObjectiveNleInterface
int verbosityLocal

- Protected Member Functions inherited from FlowSheet
void setInputConnection (std::string port, std::string internalStream)

void setOutputConnection (std::string port, std::string internalStream)

- Protected Member Functions inherited from VertexBase
void registerSynonym (std::string synonym, std::string port)

void clearBalance (void)
 used in calculateBalance, zeroes out the required variables More...

- Protected Member Functions inherited from Model
void printSvgXlink (std::ostream &svg, const std::string &link, double width, double height)

void addComponentVectorVariable (std::vector< Quantity > &variable, const std::string &tag, const std::string &description, Quantity::ValueType value)

template<typename T >
void addSubObjects (int verbosityFile, Libpf::Persistency::Defaults defaults, Persistency *persistency, int count, const std::string &optionKey, const std::string &typeKey, const std::string &tagKey, const std::string &description, std::vector< T * > &vector)

- Protected Member Functions inherited from Object
int retrieveInteger (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, int min, int max, int def=-1)

std::string retrieveString (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, const std::string def)

template<class T >
void addVariable (T &variable)

template<class T >
void addVectorVariable (std::vector< T > &variable, const std::string &tag, const std::string &description, uint32_t size, typename T::ValueType value)

 Object (const Object &other)
 copy constructor More...

 Object (Object &&other)
 move constructor More...

Objectoperator= (const Object &)
 copy assignment operator More...

Objectoperator= (Object &&other)
 move assignment operator More...

- Protected Member Functions inherited from Node
int offset (void) const

- Protected Member Functions inherited from Diagnostic
virtual ~Diagnostic ()=default

- Protected Member Functions inherited from Calculatable
virtual ~Calculatable ()=default

virtual bool isAssignmentActive (std::list< Assignment * >::iterator &q) const =0
 will be implemented in Model-aware derived class More...

- Protected Member Functions inherited from ObjectiveNleAd
void prepare_ (double *x, Jacobian *J) override
 uscales x (unknowns) values from calling function and puts them in x_ Quantities More...

void packResults_ (double *x, double *y, Jacobian *J)

 ~ObjectiveNleAd ()

- Protected Member Functions inherited from ObjectiveNleAuto
 ~ObjectiveNleAuto ()

- Protected Member Functions inherited from ObjectiveNleInterface
 ~ObjectiveNleInterface ()

- Protected Member Functions inherited from Connectivity
void inletRequired (unsigned int i)

- Protected Attributes inherited from FlowSheet
ObjectiveNleAdmyof_
 derived classes can supply their own additional equations and set this pointer in the constructor More...

- Protected Attributes inherited from Object
std::map< std::string, Integer * > integers_
 collection of integer variables More...

std::map< std::string, IntegerVector * > integerVectors_
 collection of integer variable vectors More...

std::map< std::string, Quantity * > quantities_
 collection of real variables More...

std::map< std::string, QuantityVector * > quantityVectors_
 collection of real variable vectors More...

std::map< std::string, QuantityMatrix * > quantityMatrices_
 collection of real variable matrices More...

std::map< std::string, String * > strings_
 collection of string variables More...

std::map< std::string, StringVector * > stringVectors_
 collection of string variable vectors More...

- Protected Attributes inherited from Node
std::map< std::string, std::unique_ptr< Node > > children_
 the collection of direct descendants More...

- Protected Attributes inherited from Item
Persistentparent_
 pointer to the parent Persistent; set to this by the constructor if Item is self-standing or a root Persistent of a tree More...

- Protected Attributes inherited from Diagnostic
int verbosityInstance

- Protected Attributes inherited from ObjectiveNleAdVertex
bool set_
 true if setup_of has already been called More...

- Protected Attributes inherited from ObjectiveNleAd
std::vector< Scalerscaler_
 provide scaling and unscaling More...

- Protected Attributes inherited from ObjectiveNleAuto
std::vector< Valueresiduals
 Residuals. More...

- Protected Attributes inherited from Connectivity
std::vector< EdgeBase * > inlets_
 inlet EdgeBase pointer vector More...

std::vector< EdgeBase * > outlets_
 outlet EdgeBase pointer vector More...


Detailed Description

template<int N>
class MultiCompressorIntercooled< N >

multi stage intercooled compressor template parameter N: number of stages List of ports:

  • in: low pressure gas inlet
  • out1/gasout: compressed gas outlet
  • out2/liqout: condensates

Currently supported:

  • MultiCompressorIntercooled1
  • MultiCompressorIntercooled2
  • MultiCompressorIntercooled3

#include <libpf/flowsheet/MultiCompressorIntercooled.h>

Remarks
Warning
Thread safe:
Extendable:
Platform dependencies:

Constructor & Destructor Documentation

◆ MultiCompressorIntercooled()

template<int N>
MultiCompressorIntercooled< N >::MultiCompressorIntercooled ( Libpf::Persistency::Defaults  defaults,
uint32_t  id = 0,
Persistency persistency = nullptr,
Persistent parent = nullptr,
Persistent root = nullptr
)

Member Function Documentation

◆ makeUserEquations()

template<int N>
void MultiCompressorIntercooled< N >::makeUserEquations ( std::list< Assignment * >::iterator &  p)
inlineoverridevirtual

user will code here "specification" equation list for sequential calculation

Implements FlowSheet.

◆ post()

template<int N>
void MultiCompressorIntercooled< N >::post ( Calculatable::SolutionMode  solutionMode,
int  level
)
overridevirtual

flowsheet post-computations; to be implemented by any concrete FlowSheet-derived class

Remarks
will be executed after each sequential or simultaneous iteration

Implements FlowSheet.

◆ pre()

template<int N>
void MultiCompressorIntercooled< N >::pre ( Calculatable::SolutionMode  solutionMode,
int  level
)
overridevirtual

flowsheet pre-computations; to be implemented by any concrete FlowSheet-derived class

Remarks
will be executed before each sequential or simultaneous iteration

Implements FlowSheet.

◆ QUANTITY() [1/8]

template<int N>
MultiCompressorIntercooled< N >::QUANTITY ( cr  ,
"Compression ratio"  ,
1.  0,
""
)

◆ QUANTITY() [2/8]

template<int N>
MultiCompressorIntercooled< N >::QUANTITY ( duty  ,
"Sum of intercooler duties"  ,
0.  0,
"W"
)

◆ QUANTITY() [3/8]

template<int N>
MultiCompressorIntercooled< N >::QUANTITY ( etaE  ,
"Electrical efficiency of all stages"  ,
0.  9,
""
)

◆ QUANTITY() [4/8]

template<int N>
MultiCompressorIntercooled< N >::QUANTITY ( etaM  ,
"Mechanical efficiency of all stages"  ,
0.  9,
""
)

◆ QUANTITY() [5/8]

template<int N>
MultiCompressorIntercooled< N >::QUANTITY ( ,
"Discharge pressure"  ,
10.  0,
"barg"
)

◆ QUANTITY() [6/8]

template<int N>
MultiCompressorIntercooled< N >::QUANTITY ( ,
"Intercooler temperature"  ,
100.0+273.  15,
"K"
)

◆ QUANTITY() [7/8]

template<int N>
MultiCompressorIntercooled< N >::QUANTITY ( theta  ,
"Isentropic yield of all stages"  ,
1.  0,
""
)

◆ QUANTITY() [8/8]

template<int N>
MultiCompressorIntercooled< N >::QUANTITY ( We  ,
"Total electrical power requirement"  ,
0.  0,
"W"
)

◆ setup()

template<int N>
void MultiCompressorIntercooled< N >::setup ( void  )
overridevirtual

performs initializations required immediately before solution

Reimplemented from FlowSheet.

◆ type()

template<int N>
const std::string & MultiCompressorIntercooled< N >::type ( void  ) const
inlineoverridevirtual
Returns
the C++ name of the class the instance belongs to
Note
it is the responsibility of the caller to not access this reference after the lifecycle of the Item

Implements Item.

Member Data Documentation

◆ type_

template<int N>
const std::string MultiCompressorIntercooled< N >::type_
static

The documentation for this class was generated from the following file:
