objective function with scaling based on Scaler class and analytical derivatives computed with FADOO More...

#include <ObjectiveNleAd.h>

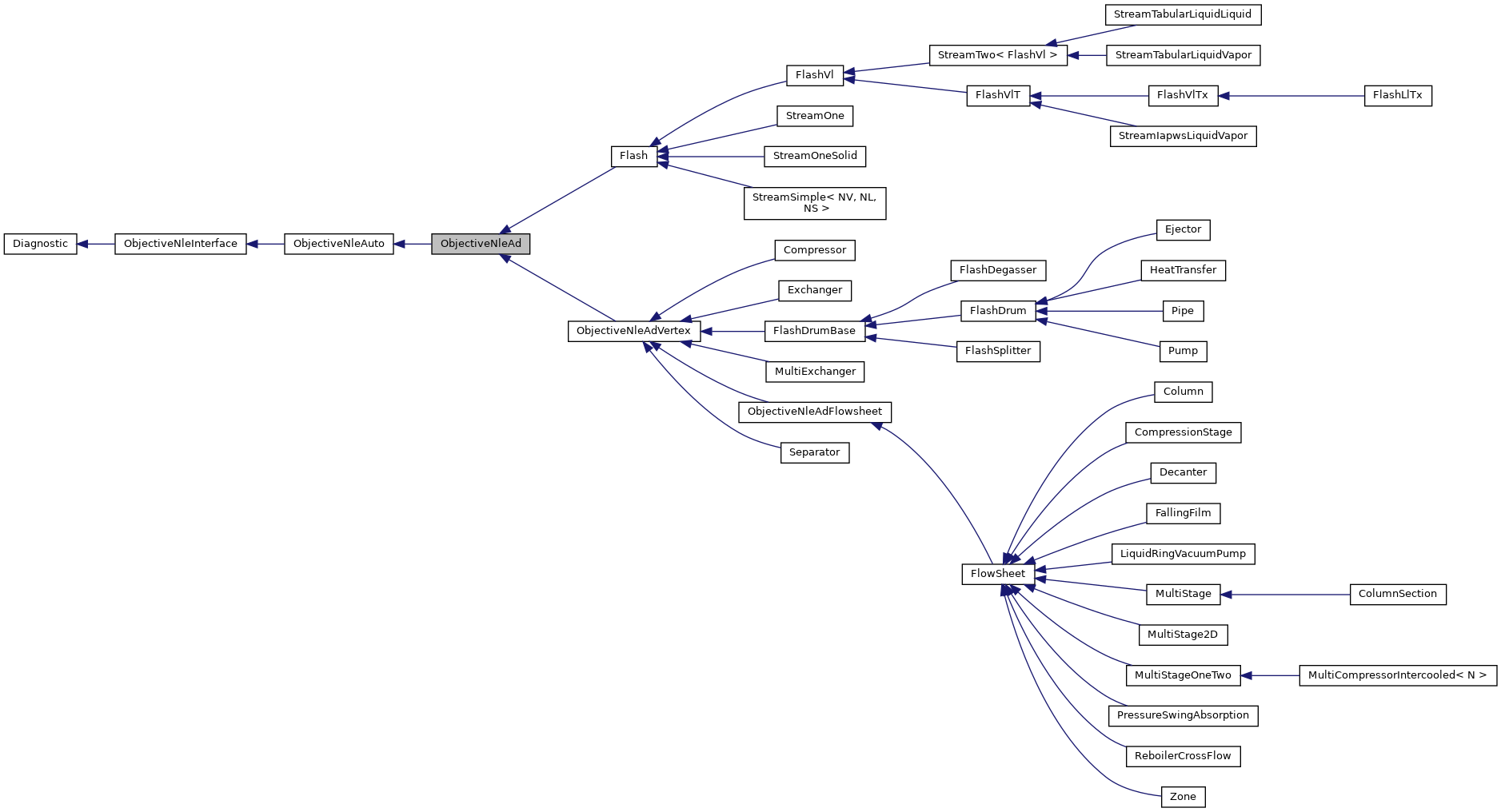

Inheritance diagram for ObjectiveNleAd:

[legend]

Public Member Functions
	ObjectiveNleAd (std::string t)
	constructor More...

double	xmin (unsigned int i)
	return the lower bound on unknown i More...

double	xmax (unsigned int i)
	return the upper bound on unknown i More...

unsigned int	size (void) const override
	returns the current size of the problem More...

void	scalex (double *x) override
	transforms the vector of "real" variables x by applying the scaling More...

void	unscalex (double *x) override
	transforms back the vector of scaled variables x by applying the unscaling More...

void	operator() (double , double , Jacobian *J) override
	implements the () operator by calling calculateResiduals; derived class may override it More...

void	addUnknown (Value *x, Scaler scaler, const std::string &tag)

void	changeUnknown (unsigned int i, Value *x, Scaler scaler, const std::string &tag)
	change the i-th unknown More...

void	addObjectiveFunction (ObjectiveNleAd &of)
	append the remote objective function More...

Public Member Functions inherited from ObjectiveNleAuto
	ObjectiveNleAuto (std::string t)
	constructor More...

virtual unsigned int	size (void) const
	returns the current size of the problem More...

bool	init (double *x)

void	setValue (unsigned int i, double x)
	copies the value for the i-th unknown from x in the Value pointed to, without altering the derivatives More...

void	copyresults (double *x)
	copies the unknown values from the x vector into the Values pointed to More...

void	inactivate (void)
	inactivates all unknowns More...

void	clearderivatives (void)
	clears the derivative information for all unknowns without setting to inactive More...

void	setActive (unsigned int i)
	activates the i-th unknown More...

void	scalex (double *) override
	transforms the vector of "real" variables x by applying the scaling More...

void	unscalex (double *x) override
	transforms back the vector of scaled variables x by applying the unscaling More...

void	operator() (double , double , Jacobian *J) override
	implements the () operator by calling calculateResiduals; derived class may override it More...

void	setx (unsigned int i, Value &x)
	sets the i-th unknown to x More...

const Value &	unknown (unsigned int i) const
	returns a reference to the i-th unknown More...

const std::string &	unknownTag (unsigned int i) const
	returns a reference to the tag of the i-th unknown More...

double	xmin (unsigned int i)
	return the lower bound on unknown i More...

double	xmax (unsigned int i)
	return the upper bound on unknown i More...

void	print (void) const
	lists unknowns More...

const std::string &	tagof (void) const
	returns the tag of the instance More...

void	settagof (std::string t)
	sets the tag of the instance More...

void	appendtagof (const std::string &t)
	appends to the tag of the instance More...

int	zero_residuals (std::vector< Value > &y, uint32_t offset)

virtual int	calculateResiduals (std::vector< Value > &y, uint32_t offset)=0

void	addUnknown (Value *x, const std::string &tag)

void	changeUnknown (unsigned int i, Value *x, const std::string &tag)
	change the i-th unknown More...

Public Member Functions inherited from ObjectiveNleInterface
	ObjectiveNleInterface (void)

virtual void	operator() (double x, double y, Jacobian *J)=0
	computes the objective function vector y at the point x and optionally the Jacobian J More...

virtual void	scalex (double *x)=0
	transforms the vector of "real" variables x by applying the scaling More...

virtual void	unscalex (double *x)=0
	transforms back the vector of scaled variables x by applying the unscaling More...

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

Protected Member Functions
void	prepare_ (double x, Jacobian J) override
	uscales x (unknowns) values from calling function and puts them in x_ Quantities More...

void	packResults_ (double x, double y, Jacobian *J)

	~ObjectiveNleAd ()

Protected Member Functions inherited from ObjectiveNleAuto
	~ObjectiveNleAuto ()

Protected Member Functions inherited from ObjectiveNleInterface
	~ObjectiveNleInterface ()

Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Protected Attributes
std::vector< Scaler >	scaler_
	provide scaling and unscaling More...

Protected Attributes inherited from ObjectiveNleAuto
std::vector< Value >	residuals
	Residuals. More...

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Friends
class	SolverNleInterface

Additional Inherited Members
Public Attributes inherited from ObjectiveNleInterface
int	verbosityLocal

Detailed Description

objective function with scaling based on Scaler class and analytical derivatives computed with FADOO

#include <libpf/core/ObjectiveNleAd.h>

Remarks

Warning: Thread safe:; Extendable:; Platform dependencies:

Constructor & Destructor Documentation

◆ ~ObjectiveNleAd()

ObjectiveNleAd::~ObjectiveNleAd ( )

inlineprotected

◆ ObjectiveNleAd()

ObjectiveNleAd::ObjectiveNleAd ( std::string t )

constructor

Member Function Documentation

◆ addObjectiveFunction()

void ObjectiveNleAd::addObjectiveFunction ( ObjectiveNleAd & of )

append the remote objective function

◆ addUnknown()

void ObjectiveNleAd::addUnknown	(	Value *	x,
		Scaler	scaler,
		const std::string &	tag
	)

append unknown x with scaler and tag to the list of unknowns

Returns: the index of the new unknown

◆ changeUnknown()

void ObjectiveNleAd::changeUnknown	(	unsigned int	i,
		Value *	x,
		Scaler	scaler,
		const std::string &	tag
	)

change the i-th unknown

◆ operator()()

void ObjectiveNleAd::operator()	(	double *	,
		double *	,
		Jacobian *	J
	)

overridevirtual

implements the () operator by calling calculateResiduals; derived class may override it

Implements ObjectiveNleInterface.

Reimplemented in ObjectiveNleAdVertex.

◆ packResults_()

void ObjectiveNleAd::packResults_	(	double *	x,
		double *	y,
		Jacobian *	J
	)

protected

extracts data from the y_ Quantities and puts them into y if required, extracts analytical derivatives from the y_[] Quantities and puts them into J

◆ prepare_()

void ObjectiveNleAd::prepare_	(	double *	x,
		Jacobian *	J
	)

overrideprotectedvirtual

uscales x (unknowns) values from calling function and puts them in x_ Quantities

Reimplemented from ObjectiveNleAuto.

◆ scalex()

void ObjectiveNleAd::scalex ( double * x )

overridevirtual

transforms the vector of "real" variables x by applying the scaling

Implements ObjectiveNleInterface.

◆ size()

unsigned int ObjectiveNleAd::size ( void ) const

overridevirtual

returns the current size of the problem

Reimplemented from ObjectiveNleAuto.

◆ unscalex()

void ObjectiveNleAd::unscalex ( double * x )

overridevirtual

transforms back the vector of scaled variables x by applying the unscaling

Implements ObjectiveNleInterface.

Reimplemented in ObjectiveNleAdVertex.

◆ xmax()

double ObjectiveNleAd::xmax ( unsigned int i )

return the upper bound on unknown i

◆ xmin()

double ObjectiveNleAd::xmin ( unsigned int i )

return the lower bound on unknown i

Friends And Related Function Documentation

◆ SolverNleInterface

friend class SolverNleInterface

friend

Member Data Documentation

◆ scaler_

std::vector<Scaler> ObjectiveNleAd::scaler_

protected

provide scaling and unscaling

The documentation for this class was generated from the following file:

ObjectiveNleAd.h
