RouteHeatLiquidDummySolidBkk Class Reference

#include <routes.h>

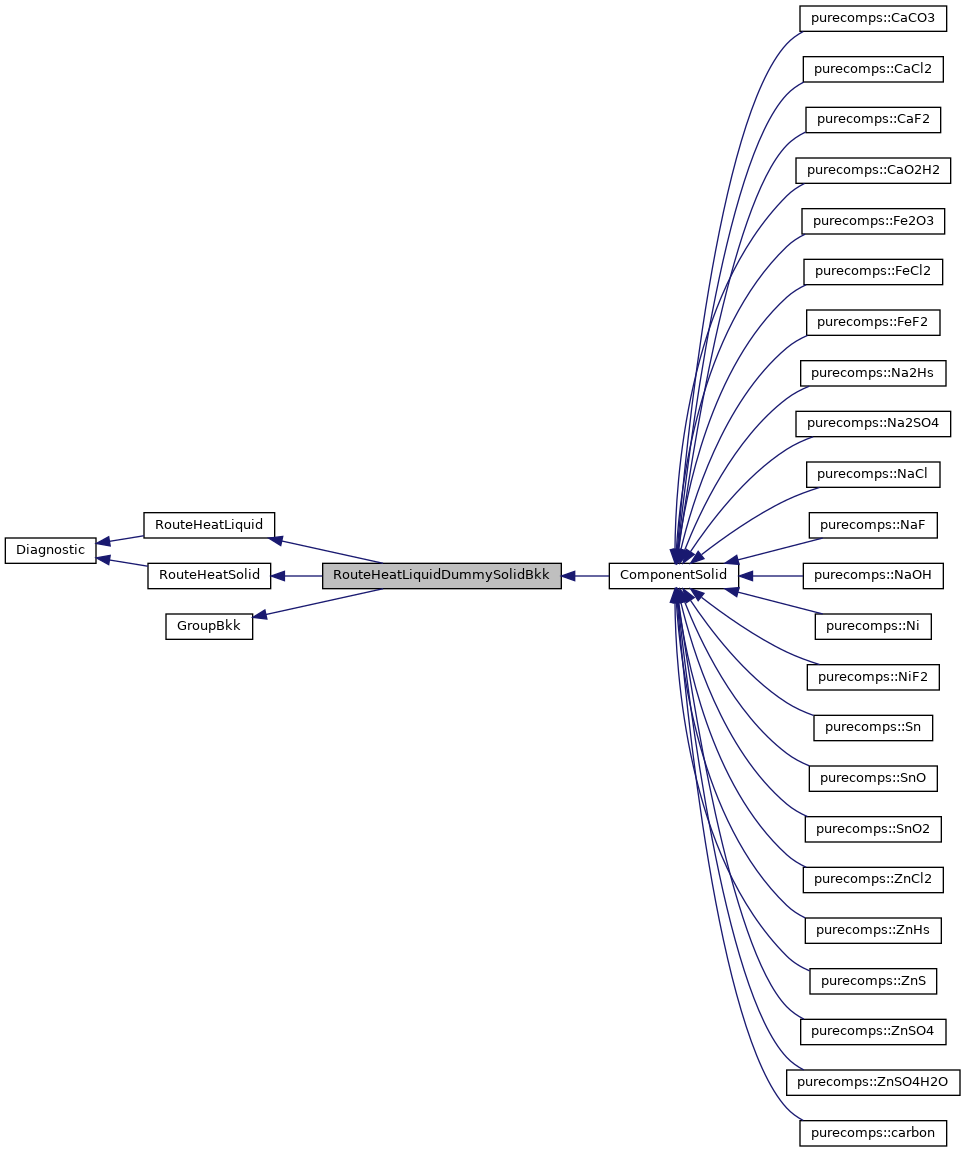

Inheritance diagram for RouteHeatLiquidDummySolidBkk:

Public Member Functions
	RouteHeatLiquidDummySolidBkk (const ParameterBkk &bp1, const ParameterBkk &bp2, const ParameterBkk &bp3, const ParameterBkk &bp4, const ParameterBkk &bp5, const ParameterBkk &bp6, const ParameterBkk &bp7)
	constructor based on seven parameter set More...
Value	hs (const Value &T, const Value &) override
	Molar solid enthalpy, J/kmol. More...
Value	ss (const Value &, const Value &) override
	Molar solid entropy, J/kmol/K. More...
Value	cps (const Value &, const Value &) override
	Molar solid cp, J/kmol/K. More...
Value	hl (const Value &T, const Value &P) override
	Molar liquid enthalpy, J/kmol. More...
Value	sl (const Value &T, const Value &P) override
	Molar liquid entropy, J/kmol/K. More...
Value	cpl (const Value &T, const Value &P) override
	Molar liquid cp, J/kmol/K. More...
Public Member Functions inherited from RouteHeatLiquid
	RouteHeatLiquid (void)
virtual	~RouteHeatLiquid (void)
virtual Value	hl (const Value &T, const Value &P)=0
	Molar liquid enthalpy, J/kmol. More...
virtual Value	sl (const Value &T, const Value &P)=0
	Molar liquid entropy, J/kmol/K. More...
Value	gl (const Value &T, const Value &P)
	Molar liquid Gibbs free energy, J/kmol. More...
virtual Value	cpl (const Value &T, const Value &P)=0
	Molar liquid cp, J/kmol/K. More...
Public Member Functions inherited from Diagnostic
	Diagnostic (void)
void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...
int	verbosity (void) const
Public Member Functions inherited from RouteHeatSolid
	RouteHeatSolid (void)
virtual	~RouteHeatSolid (void)
virtual Value	hs (const Value &T, const Value &P)=0
	Molar solid enthalpy, J/kmol. More...
virtual Value	ss (const Value &T, const Value &P)=0
	Molar solid entropy, J/kmol/K. More...
Value	gs (const Value &T, const Value &P)
	Molar solid Gibbs free energy, J/kmol. More...
virtual Value	cps (const Value &T, const Value &P)=0
	Molar solid cp, J/kmol/K. More...
Public Member Functions inherited from GroupBkk
	GroupBkk (const std::vector< ParameterBkk > &bp)
	vector constructor More...
	GroupBkk (const ParameterBkk &bp1, const ParameterBkk &bp2, const ParameterBkk &bp3, const ParameterBkk &bp4, const ParameterBkk &bp5, const ParameterBkk &bp6, const ParameterBkk &bp7)
	constructor based on seven parameter set More...
Active	calculate_ (enum ParameterBkk::property p, const Active &x) const
Active	cp (const Active &x) const
Active	h (const Active &x) const
Active	s (const Active &x) const
Active	g (const Active &x) const
double	xmin (void) const
	return overall lower temperature limit in K More...
double	xmax (void) const
	return overall upper temperature limit in K More...
void	setDh0 (const Active &dh0_)
void	setCp (const Active &cp0_)

Additional Inherited Members
Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default
Protected Attributes inherited from Diagnostic
int	verbosityInstance

Detailed Description

Implementation of solid thermal properties using the bkk model and dummy liquid properties (same as the solid)

#include <libpf/components/routes.h>

Remarks

Warning

Thread safe:

Extendable:

Platform dependencies:

Constructor & Destructor Documentation

RouteHeatLiquidDummySolidBkk()

RouteHeatLiquidDummySolidBkk::RouteHeatLiquidDummySolidBkk	(	const ParameterBkk &	bp1,
		const ParameterBkk &	bp2,
		const ParameterBkk &	bp3,
		const ParameterBkk &	bp4,
		const ParameterBkk &	bp5,
		const ParameterBkk &	bp6,
		const ParameterBkk &	bp7
	)

constructor based on seven parameter set

Member Function Documentation

cpl()

Value RouteHeatLiquidDummySolidBkk::cpl ( const Value &  T, const Value &  P  )

overridevirtual

Molar liquid cp, J/kmol/K.

Implements RouteHeatLiquid.

cps()

Value RouteHeatLiquidDummySolidBkk::cps ( const Value &  T, const Value &  P  )

overridevirtual

Molar solid cp, J/kmol/K.

Implements RouteHeatSolid.

hl()

Value RouteHeatLiquidDummySolidBkk::hl ( const Value &  T, const Value &  P  )

overridevirtual

Molar liquid enthalpy, J/kmol.

Implements RouteHeatLiquid.

hs()

Value RouteHeatLiquidDummySolidBkk::hs ( const Value &  T, const Value &  P  )

overridevirtual

Molar solid enthalpy, J/kmol.

Implements RouteHeatSolid.

sl()

Value RouteHeatLiquidDummySolidBkk::sl ( const Value &  T, const Value &  P  )

overridevirtual

Molar liquid entropy, J/kmol/K.

Implements RouteHeatLiquid.

ss()

Value RouteHeatLiquidDummySolidBkk::ss ( const Value &  T, const Value &  P  )

overridevirtual

Molar solid entropy, J/kmol/K.

Implements RouteHeatSolid.

---

The documentation for this class was generated from the following file:

• routes.h
