A total phase model Accumulates mass and molar flows over all phases and computes the total phase for a stream. More...

#include <PhaseTotal.h>

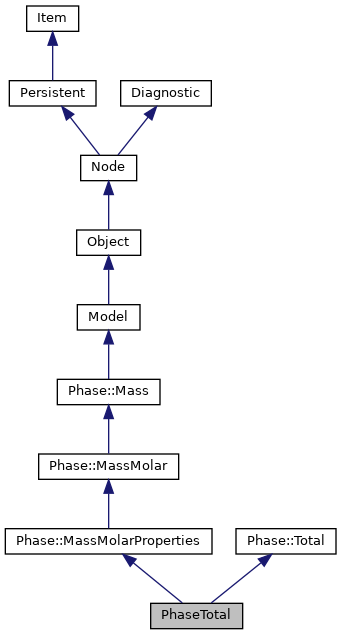

Inheritance diagram for PhaseTotal:

[legend]

Public Member Functions
	PhaseTotal (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency persistency=nullptr, Persistent parent=nullptr, Persistent *root=nullptr)

	GENERATE_COPY_MOVE (PhaseTotal)

	GENERATE_COPY_MOVE_DERIVED (PhaseTotal, Mass)

	~PhaseTotal (void)

const std::string &	type (void) const override

void	initializeNonPersistents (void) override
	estimates hidden, non-persistent unknowns from the current results More...

const Value &	calculate_P (const Value &rho, const Value &Temp) const override

const Value &	calculate_rho (const Value &Pres, const Value &Temp) const override

const Value &	calculate_H (const Value &Pres, const Value &Temp) const override

const Value &	calculate_Cp (const Value &Pres, const Value &Temp) const override

const Value &	calculate_S (const Value &Pres, const Value &Temp) const override

Value	mu (const Value &Pres, const Value &Temp) const override

Value	kappa (const Value &Pres, const Value &Temp) const override

Value	sigma (const Value &Pres, const Value &Temp) const override

const Value &	fugacity (int) const override

Public Member Functions inherited from Phase::MassMolarProperties
	MassMolarProperties (Libpf::Persistency::Defaults defaults, uint32_t id, Persistency persistency, Persistent parent, Persistent *root)

	QUANTITY (vdot, "Volume flow", 10.0, "m3/h")

	QUANTITY (v, "Molar volume", 0.018, "m3/kmol")

	QUANTITY (rho, "Mass Density", 1000.0, "kg/m3")

	QUANTITY (h, "Specific Enthalpy by mass", 18.0, "J/kg")

	QUANTITY (H, "Specific Enthalpy by moles", 1.0, "J/kmol")

	QUANTITY (cp, "Specific Heat by mass", 4186.8, "J/kg/K")

	QUANTITY (Cp, "Specific Heat by moles", 4186.8/18.0, "J/kmol/K")

	QUANTITY (s, "Specific Entropy by mass", 0.0, "J/kg/K")

	QUANTITY (S, "Specific Entropy by moles", 0.0, "J/kmol/K")

	QUANTITY (g, "Specific Gibbs free energy by mass", 0.0, "J/kg")

virtual	~MassMolarProperties (void)

Mass &	operator+= (const Mass &rhs) override
	mixes *this with the phase rhs More...

Mass &	operator-= (const Mass &rhs) override
	subtracts rhs from *this More...

Mass &	operator*= (const Value &factor) override
	scales the phase flows by factor More...

void	calculateProperties (const Value &Pres, const Value &Temp, bool writeH) override

virtual const Value &	calculate_P (const Value &rho, const Value &Temp) const =0

virtual const Value &	calculate_rho (const Value &Pres, const Value &Temp) const =0

virtual const Value &	calculate_H (const Value &Pres, const Value &Temp) const =0

virtual const Value &	calculate_Cp (const Value &Pres, const Value &Temp) const =0

virtual const Value &	calculate_S (const Value &Pres, const Value &Temp) const =0

virtual Value	mu (const Value &Pres, const Value &Temp) const =0

virtual Value	kappa (const Value &Pres, const Value &Temp) const =0

virtual Value	sigma (const Value &Pres, const Value &Temp) const =0

virtual const Value &	fugacity (int i) const =0

Value	prandtl (const Value &Pres, const Value &Temp) const

Public Member Functions inherited from Phase::MassMolar
	MassMolar (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency persistency=nullptr, Persistent parent=nullptr, Persistent *root=nullptr)

	QUANTITY (AMW, "Average molecular weight", 18.0, "kg/kmol")

	QUANTITY (ndot, "Molar flow", 10000.0/18.0, "kmol/h")

void	calculateX (const Libpf::Utility::MassBalanceMode &mb) override

void	setEquimolar (const Libpf::Utility::MassBalanceMode &mb) override
	sets equimolar composition, based on the supplied mass balance mode More...

void	setEquimass (const Libpf::Utility::MassBalanceMode &mb) override
	sets equimass composition, based on the supplied mass balance mode More...

void	setPure (const Libpf::Utility::MassBalanceMode &mb, int i) override
	sets phase composition to pure in component i, based on the supplied mass balance mode More...

void	setImpure (const Libpf::Utility::MassBalanceMode &mb, int i, double eps) override
	sets phase composition to almost pure, based on the supplied mass balance mode More...

void	setEquimolarNoKey (const Libpf::Utility::MassBalanceMode &mb, int i) override
	sets equimolar composition except for component i, based on the supplied mass balance mode More...

void	setEquimassNoKey (const Libpf::Utility::MassBalanceMode &mb, int i) override
	sets equimass composition except for component i, based on the supplied mass balance mode More...

void	setSymmetrical (const Libpf::Utility::MassBalanceMode &mb, double eps)
	sets phase composition to a symmetrical distribution, based on the supplied mass balance mode; More...

void	setAsymmetrical (const Libpf::Utility::MassBalanceMode &mb, bool increasing, double eps)
	sets phase composition to an asymmetrical distribution, based on the supplied mass balance mode; More...

void	calculate (int level=0) override

bool	isPure (void) override

Libpf::Utility::MassBalanceMode	representation (void) const override
	return default flow base More...

Value &	totalFlow (void) override
	return total flow in the default flow base More...

Value &	flow (int i) override
	return flow for component i in the default flow base More...

const Value &	flow (int i) const override
	return flow for component i in the default flow base More...

Value &	frac (int i) override
	return fraction for component i in the default flow base More...

std::vector< Quantity > &	fracs (void) override
	return reference to the fractions for all components in the default flow base More...

void	clearComposition (const Libpf::Utility::MassBalanceMode &mb) override
	set to zero the composition of each component, based on the supplied mass balance mode More...

Mass &	operator+= (const Mass &rhs) override
	mixes *this with the phase rhs More...

Mass &	operator-= (const Mass &rhs) override
	subtracts rhs from *this More...

Mass &	operator*= (const Value &factor) override
	scales the phase flows by factor More...

Public Member Functions inherited from Phase::Mass
	Mass (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency persistency=nullptr, Persistent parent=nullptr, Persistent *root=nullptr)

	GENERATE_COPY_MOVE_BASE (Mass)

	QUANTITY (fraction, "phase fraction", one, "")

	QUANTITY (mdot, "mass flow", 10000.0, "kg/h")

virtual void	setPhaseType (Libpf::Utility::PhaseType pt)
	Set the phase type to pt (Vapor, Liquid, Solid) More...

Libpf::Utility::PhaseType	phaseType (void) const
	Returns the phase type. More...

void	setPhaseIndex (Libpf::Utility::PhaseIndex pi, int ordinal=0)
	Set the PhaseIndex pi plus ordinal. More...

Libpf::Utility::PhaseIndex	phaseIndex (void) const
	Returns the phase index. More...

virtual Libpf::Utility::MassBalanceMode	representation (void) const
	return default flow base More...

virtual Value &	totalFlow (void)
	return total flow in the default flow base More...

virtual Value &	flow (int i)
	return flow for component i in the default flow base More...

virtual const Value &	flow (int i) const
	return flow for component i in the default flow base More...

virtual Value &	frac (int i)
	return fraction for component i in the default flow base More...

virtual std::vector< Quantity > &	fracs (void)
	return reference to the fractions for all components in the default flow base More...

virtual void	calculateProperties (const Value &Pres, const Value &Temp, bool writeH=true)

virtual void	calculateX (const Libpf::Utility::MassBalanceMode &mb)

virtual void	setEquimolar (const Libpf::Utility::MassBalanceMode &mb)
	sets equimolar composition, based on the supplied mass balance mode More...

virtual void	setEquimass (const Libpf::Utility::MassBalanceMode &mb)
	sets equimass composition, based on the supplied mass balance mode More...

virtual void	setPure (const Libpf::Utility::MassBalanceMode &mb, int i)
	sets phase composition to pure in component i, based on the supplied mass balance mode More...

virtual void	setImpure (const Libpf::Utility::MassBalanceMode &mb, int i, double eps)
	sets phase composition to almost pure, based on the supplied mass balance mode More...

virtual void	setEquimolarNoKey (const Libpf::Utility::MassBalanceMode &mb, int i)
	sets equimolar composition except for component i, based on the supplied mass balance mode More...

virtual void	setEquimassNoKey (const Libpf::Utility::MassBalanceMode &mb, int i)
	sets equimass composition except for component i, based on the supplied mass balance mode More...

void	setSymmetrical (const Libpf::Utility::MassBalanceMode &mb, double eps)
	sets phase composition to a symmetrical distribution, based on the supplied mass balance mode; More...

void	setAsymmetrical (const Libpf::Utility::MassBalanceMode &mb, bool increasing, double eps)
	sets phase composition to an asymmetrical distribution, based on the supplied mass balance mode; More...

virtual bool	isPure (void)

virtual void	clearComposition (const Libpf::Utility::MassBalanceMode &mb)

virtual Mass &	operator+= (const Mass &rhs)
	mixes *this with the phase rhs More...

virtual Mass &	operator-= (const Mass &rhs)
	subtracts rhs from *this More...

virtual Mass &	operator*= (const Value &factor)
	scales the phase flows by factor More...

Mass &	addComponents (const Mass &rhs, int istart, int iend)

Mass &	subtractComponents (const Mass &rhs, int istart, int iend)

ObjectiveNleAd *	objectiveFunction (void) override
	returns a pointer to the model's objective function More...

void	calculate (int level=0) override

void	setup (void) override
	performs initializations required immediately before solution More...

Libpf::Utility::Category	category (void) const override
	return model Category More...

Public Member Functions inherited from Model
	Model (Libpf::Persistency::Defaults defaults, uint32_t id, Persistency persistency, Persistent parent, Persistent *root)

	INTEGER (nCalculations, "Number of times the model has been calculated", 0)

	STRINGVECTOR (errors, "Errors from the last computation", 0, "")

	STRINGVECTOR (warnings, "Warnings from the last computation", 0, "")

bool	isPristine (void) const

void	unSetInput (void)
	wipes out all tags marked as inputs More...

void	reportMessages (void)
	recursively collect status of all sub-objects and report to parent More...

void	resetErrors (void)

void	setWarning (std::string s)
	send new warning message to local queue More...

void	setError (std::string s)
	send new error message to local queue More...

void	reportWarning (std::string s)
	propagate warning message from sub-object to local queue More...

void	reportError (std::string s)
	propagate error message from sub-object to local queue More...

void	setCalculated (void)
	increments nCalculations counter and unsets pristinity More...

void	setPristineRecursive (void)
	force next calculation to restart as if the model had never been calculated during this runtime session, also for all contained objects More...

void	setPristine (void)
	force next calculation to restart as if the model had never been calculated during this runtime session More...

void	setRunTime (double t)
	set the run time More...

virtual Libpf::Utility::Category	category (void) const =0
	return model Category More...

virtual void	calculate (int level=0)=0

virtual void	setup (void)=0
	performs initializations required immediately before solution More...

virtual int	maximumIterations (void)
	returns default maximum iterations for main computation; defaults to 200 More...

virtual void	initializeNonPersistents (void)=0
	estimates hidden, non-persistent unknowns from the current results More...

virtual ObjectiveNleAd *	objectiveFunction (void)=0
	returns a pointer to the model's objective function More...

std::ostream &	print (std::ostream &os, bool strings, bool quantities, bool integers, bool recursive) const

std::ostream &	printFull (std::ostream &) const
	print the model quantities, including derivative info, in text format to os More...

void	printHtml (const char *dir) const

virtual void	printSvg (const char *fileName, bool tiny, bool raster, int offset)

void	printSvgAll (const char *dir, bool tiny, bool raster, int offset, std::vector< std::string > &list)
	Recursively output the model and all descendants in SVG format as separate id.SVG files in the directory dir. More...

virtual void	printXml (const char dir, Model precedingSibling, Model *followingSibling) const

void	printXmlToc (std::ofstream &toc, int indent) const

void	printOds (std::ofstream &ods) const

Public Member Functions inherited from Object
	Object (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency persistency=nullptr, Persistent parent=nullptr, Persistent *root=nullptr)

Libpf::Persistency::Defaults	defaults (void) const

std::ostream &	printJson (std::ostream &os, int level=0) const override
	print Node in JSON format More...

void	readVariables (Persistency *persistency) override
	reads Q, QV and QM from persistency More...

void	readParameters (Persistency *persistency) override
	reads I, IV, S and SV from persistency More...

Node &	operator= (const Node &) override
	copy assignment operator More...

Node &	operator= (Node &&other) override
	move assignment More...

	~Object (void)

const std::string &	type (void) const override

Object &	at (const std::string &fullRelativeTag)

const Object &	at (const std::string &fullRelativeTag) const

Object &	at (const std::string &fullRelativeTag, int index)

const Value &	Q (const std::string &tag) const

const Value &	Q (const std::string &tag, int index) const

const Value &	Q (const std::string &tag, int row, int column) const

Value &	Q (const std::string &tag)

Value &	Q (const std::string &tag, int index)

Value &	Q (const std::string &tag, int row, int column)

const Value &	Q (const std::string &tag, std::string componentName) const

Value &	Q (const std::string &tag, std::string componentName)

const Value &	Q (const std::string &tag, int index, std::string componentName) const

Value &	Q (const std::string &tag, int index, std::string componentName)

const int &	I (const std::string &tag) const

const int &	I (const std::string &tag, int index) const

int &	I (const std::string &tag)

int &	I (const std::string &tag, int index)

const std::string &	S (const std::string &tag) const

const std::string &	S (const std::string &tag, int index) const

std::string &	S (const std::string &tag)

std::string &	S (const std::string &tag, int index)

bool	operator!= (const Object &rhs) const

bool	operator== (const Object &rhs) const

bool	compareParameters (const Object &rhs) const

bool	existsI (const std::string &tag) const

bool	existsS (const std::string &tag) const

bool	existsQ (const std::string &tag) const

void	push (void) const
	store the current status of the object and all its sub-objects in the last-in-first-out queue of real variables values More...

void	pop (void)
	restore the status of the object and all its sub-objects from the last-in-first-out queue of real variables values More...

void	clear (void) const
	clear the last-in-first-out queue of real variables values used for storing and retrieving the status More...

const RangeQuantities	quantities (void)

const ConstRangeQuantities	quantities (void) const

Public Member Functions inherited from Node
	Node (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency persistency=nullptr, Persistent parent=nullptr, Persistent *root=nullptr)

	Node (const Node &other)
	copy constructor More...

	Node (Node &&other)
	move constructor More...

virtual std::unique_ptr< Node >	clone (void) const

virtual Node &	operator= (const Node &other)
	copy assignment operator copies all elements but root which is set to nullptr More...

virtual Node &	operator= (Node &&other)
	move assignment More...

	~Node ()

int	insert (Persistency *persistency) const override

int	update (Persistency *persistency) const override

void	restore (Persistency *persistency) override

void	remove (Persistency *persistency) const override

uint32_t	rootId (void) const override

uint32_t	range (void) const override

uint32_t	getId (void) override
	returns the next available id and increments the internal counter More...

const std::string &	type (void) const override

virtual std::ostream &	printJson (std::ostream &os, int level=0) const
	print Node in JSON format More...

Node &	addChild (std::string type, uint32_t id, Persistency *persistency)

Node &	addChild (std::string type, Libpf::Persistency::Defaults defaults)

Node &	addChild (const Node &child)

Node &	addChild (std::unique_ptr< Node > child)

std::unique_ptr< Node >	prune (const std::string &tag)

const Node &	child (const std::string &tag) const

Node &	at (const std::string &fullRelativeTag)

const Node &	at (const std::string &fullRelativeTag) const

uint32_t	descendants (void) const

Persistent *	root (void) const

void	renameChild (const std::string &oldName, const std::string &newName)

bool	existsChild (std::string tag) const

bool	exists (uint32_t id)

Node &	search (uint32_t id)

bool	operator!= (const Node &rhs) const

bool	operator== (const Node &rhs) const

virtual void	readVariables (Persistency *)
	reads Q, QV and QM from persistency More...

virtual void	readParameters (Persistency *)
	reads I, IV, S and SV from persistency More...

bool	isRestored (void) const
	return whether the Node has just been retrieved from persistent storage More...

void	setIcon (std::string icon, double width, double height)

bool	hasIcon (void) const

std::string	iconName (bool raster) const

double	iconWidth (void) const

double	iconHeight (void) const

const Range	children (void)

const ConstRange	children (void) const

Public Member Functions inherited from Persistent
	Persistent (const std::string &tag, const std::string &description, Persistent *parent, uint32_t id)
	main constructor More...

	Persistent (const Persistent &)
	copy constructor More...

Persistent &	operator= (const Persistent &)
	copy assignment More...

	Persistent (Persistent &&other)
	move constructor More...

Persistent &	operator= (Persistent &&other)
	move assignment More...

	~Persistent (void)

uint32_t	id (void) const

std::string	uuid (void) const

uint32_t	parentId (void) const

virtual uint32_t	rootId (void) const =0

virtual uint32_t	range (void) const =0

virtual uint32_t	getId (void)=0
	returns the next available id and increments the internal counter More...

double	created_at (void) const

double	updated_at (void) const

void	updated_at (double u) const

virtual int	insert (Persistency *persistency) const =0

virtual int	update (Persistency *persistency) const =0

virtual void	restore (Persistency *persistency)=0

virtual void	remove (Persistency *persistency) const =0

Public Member Functions inherited from Item
	Item (const Item &other)
	copy constructor copies all elements but parent which is set to nullptr More...

Item &	operator= (const Item &other)
	copy assignment operator copies all elements but parent which is set to nullptr More...

	Item (const std::string &tag, const std::string &description, Persistent *parent)

	Item (Item &&other)
	move constructor More...

Item &	operator= (Item &&other)
	move assignment operator More...

virtual	~Item ()

const std::string &	tag () const

const std::string &	description () const

std::string	fullTag () const

const Persistent *	parent () const

virtual const std::string &	type () const =0

void	setTag (const std::string &tag)

void	setDescription (const std::string &description)

void	setWideTag (const std::wstring &tag)
	wide-character variant, More...

void	setWideDescription (const std::wstring &description)
	wide-character variant, More...

bool	operator!= (const Item &rhs) const

bool	operator== (const Item &rhs) const

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

Public Member Functions inherited from Phase::Total
void	setStream (StreamInterface *s)

const StreamInterface *	my_stream (void) const

Static Public Attributes
static const std::string	type_

Additional Inherited Members
Public Attributes inherited from Phase::MassMolar
std::vector< Quantity >	x
	Mole fraction. More...

std::vector< Quantity >	ndotcomps
	Mole flow of each component. More...

Public Attributes inherited from Phase::Mass
std::vector< Quantity >	w
	Mass fraction. More...

std::vector< Quantity >	mdotcomps
	Mass flow of each component. More...

Protected Member Functions inherited from Phase::MassMolarProperties
void	calculateMw_ (void) override
	assumes the phase has mdot and w[] filled in More...

void	calculateM_ (void) override
	assumes the phase has mdotcomps[] filled in More...

void	calculateNx_ (void) override
	perform calculation assuming the phase has ndot and x[] filled in (default) More...

void	calculateMx_ (void) override
	assumes the phase has mdot and x[] filled in More...

void	calculateNw_ (void) override
	assumes the phase has ndot and w[] filled in More...

void	calculateN_ (void) override
	assumes the phase has ndotcomps[] filled in More...

void	calculateMw_ (void) override
	assumes the phase has mdot and w[] filled in More...

void	calculateM_ (void) override
	assumes the phase has mdotcomps[] filled in More...

virtual void	calculateNx_ (void)
	perform calculation assuming the phase has ndot and x[] filled in (default) More...

virtual void	calculateMx_ (void)
	assumes the phase has mdot and x[] filled in More...

virtual void	calculateNw_ (void)
	assumes the phase has ndot and w[] filled in More...

virtual void	calculateN_ (void)
	assumes the phase has ndotcomps[] filled in More...

Protected Member Functions inherited from Phase::Mass
void	addVariables (void)

virtual void	calculateMw_ (void)
	assumes the phase has mdot and w[] filled in More...

virtual void	calculateM_ (void)
	assumes the phase has mdotcomps[] filled in More...

Protected Member Functions inherited from Model
void	printSvgXlink (std::ostream &svg, const std::string &link, double width, double height)

void	addComponentVectorVariable (std::vector< Quantity > &variable, const std::string &tag, const std::string &description, Quantity::ValueType value)

template<typename T >
void	addSubObjects (int verbosityFile, Libpf::Persistency::Defaults defaults, Persistency persistency, int count, const std::string &optionKey, const std::string &typeKey, const std::string &tagKey, const std::string &description, std::vector< T > &vector)

Protected Member Functions inherited from Object
int	retrieveInteger (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, int min, int max, int def=-1)

std::string	retrieveString (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, const std::string def)

template<class T >
void	addVariable (T &variable)

template<class T >
void	addVectorVariable (std::vector< T > &variable, const std::string &tag, const std::string &description, uint32_t size, typename T::ValueType value)

	Object (const Object &other)
	copy constructor More...

	Object (Object &&other)
	move constructor More...

Object &	operator= (const Object &)
	copy assignment operator More...

Object &	operator= (Object &&other)
	move assignment operator More...

Protected Member Functions inherited from Node
int	offset (void) const

Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Protected Attributes inherited from Object
std::map< std::string, Integer * >	integers_
	collection of integer variables More...

std::map< std::string, IntegerVector * >	integerVectors_
	collection of integer variable vectors More...

std::map< std::string, Quantity * >	quantities_
	collection of real variables More...

std::map< std::string, QuantityVector * >	quantityVectors_
	collection of real variable vectors More...

std::map< std::string, QuantityMatrix * >	quantityMatrices_
	collection of real variable matrices More...

std::map< std::string, String * >	strings_
	collection of string variables More...

std::map< std::string, StringVector * >	stringVectors_
	collection of string variable vectors More...

Protected Attributes inherited from Node
std::map< std::string, std::unique_ptr< Node > >	children_
	the collection of direct descendants More...

Protected Attributes inherited from Item
Persistent *	parent_
	pointer to the parent Persistent; set to this by the constructor if Item is self-standing or a root Persistent of a tree More...

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Detailed Description

A total phase model Accumulates mass and molar flows over all phases and computes the total phase for a stream.

See also: Stream

#include <libpf/phases/PhaseTotal.h>

Remarks

Warning: Requires the list of components to be populated before the construction; Thread safe:; Extendable:; Platform dependencies:

Constructor & Destructor Documentation

◆ PhaseTotal()

PhaseTotal::PhaseTotal	(	Libpf::Persistency::Defaults	defaults,
		uint32_t	id = `0`,
		Persistency *	persistency = `nullptr`,
		Persistent *	parent = `nullptr`,
		Persistent *	root = `nullptr`
	)

◆ ~PhaseTotal()

PhaseTotal::~PhaseTotal ( void )

Member Function Documentation

◆ calculate_Cp()

const Value & PhaseTotal::calculate_Cp	(	const Value &	Pres,
		const Value &	Temp
	)		const

overridevirtual

Returns: molar constant pressure heat capacity in J/kmol/K

Parameters

Pres	pressure, Pa
Temp	temperature, K

Implements Phase::MassMolarProperties.

◆ calculate_H()

const Value & PhaseTotal::calculate_H	(	const Value &	Pres,
		const Value &	Temp
	)		const

overridevirtual

Returns: molar enthalpy in J/kmol

Parameters

Pres	pressure, Pa
Temp	temperature, K

Implements Phase::MassMolarProperties.

◆ calculate_P()

const Value & PhaseTotal::calculate_P	(	const Value &	rho,
		const Value &	Temp
	)		const

overridevirtual

Returns: total pressure in Pa

Parameters

rho	molar density kmol/m3 (for the calculation of the {vapor, liquid} eos root this parameter can be used to pass an adimensional density)
Temp	temperature, K

Implements Phase::MassMolarProperties.

◆ calculate_rho()

const Value & PhaseTotal::calculate_rho	(	const Value &	Pres,
		const Value &	Temp
	)		const

overridevirtual

Returns: molar density in kmol/m3

Parameters

Pres	pressure, Pa
Temp	temperature, K

Implements Phase::MassMolarProperties.

◆ calculate_S()

const Value & PhaseTotal::calculate_S	(	const Value &	Pres,
		const Value &	Temp
	)		const

overridevirtual

Returns: molar entropy in J/kmol/K

Parameters

Pres	pressure, Pa
Temp	temperature, K

Implements Phase::MassMolarProperties.

◆ fugacity()

const Value & PhaseTotal::fugacity ( int i ) const

inlineoverridevirtual

Returns: fugacity coefficient of specified component

Parameters

i	component index

Implements Phase::MassMolarProperties.

◆ GENERATE_COPY_MOVE()

PhaseTotal::GENERATE_COPY_MOVE ( PhaseTotal )

◆ GENERATE_COPY_MOVE_DERIVED()

PhaseTotal::GENERATE_COPY_MOVE_DERIVED	(	PhaseTotal	,
		Mass
	)

◆ initializeNonPersistents()

void PhaseTotal::initializeNonPersistents ( void )

overridevirtual

estimates hidden, non-persistent unknowns from the current results

Implements Model.

◆ kappa()

Value PhaseTotal::kappa	(	const Value &	Pres,
		const Value &	Temp
	)		const

overridevirtual

Returns: thermal conductovity in W/(m*K)

Parameters

Pres	pressure, Pa
Temp	temperature, K

Implements Phase::MassMolarProperties.

◆ mu()

Value PhaseTotal::mu	(	const Value &	Pres,
		const Value &	Temp
	)		const

overridevirtual

Returns: dynamic viscosity in Pa*s

Parameters

Pres	pressure, Pa
Temp	temperature, K

Implements Phase::MassMolarProperties.

◆ sigma()

Value PhaseTotal::sigma	(	const Value &	Pres,
		const Value &	Temp
	)		const

overridevirtual

Returns: surface tension in N/m

Parameters

Pres	pressure, Pa
Temp	temperature, K

Implements Phase::MassMolarProperties.

◆ type()

const std::string & PhaseTotal::type ( void ) const

inlineoverridevirtual

Returns: the C++ name of the class the instance belongs to

Note: it is the responsibility of the caller to not access this reference after the lifecycle of the Item

Reimplemented from Object.

Member Data Documentation

◆ type_

const std::string PhaseTotal::type_

static

The documentation for this class was generated from the following file:

PhaseTotal.h

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PhaseTotal()

◆ ~PhaseTotal()

Member Function Documentation

◆ calculate_Cp()

◆ calculate_H()

◆ calculate_P()

◆ calculate_rho()

◆ calculate_S()

◆ fugacity()

◆ GENERATE_COPY_MOVE()

◆ GENERATE_COPY_MOVE_DERIVED()

◆ initializeNonPersistents()

◆ kappa()

◆ mu()

◆ sigma()

◆ type()

Member Data Documentation

◆ type_
