#include <Flash.h>

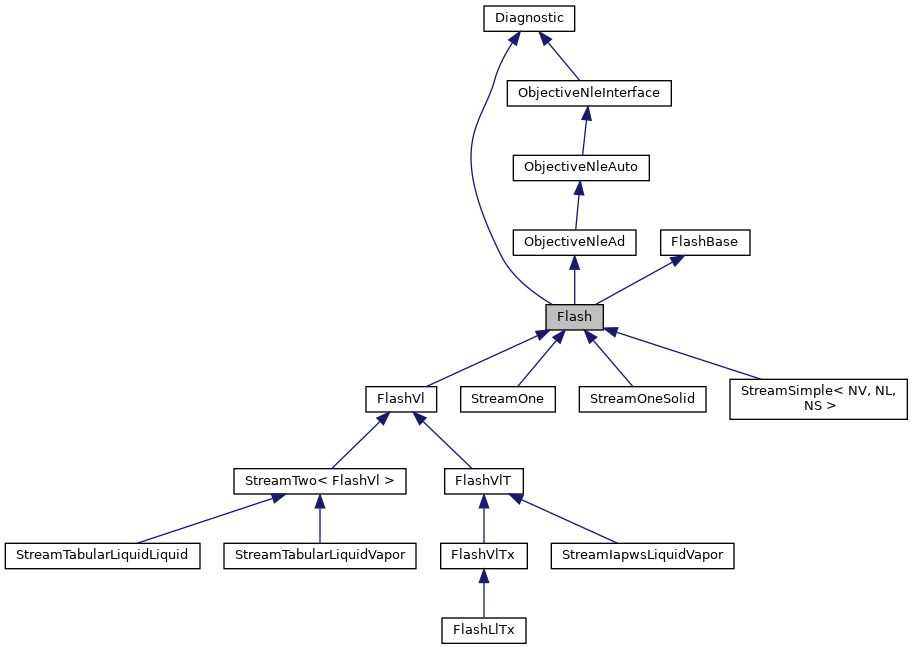

Inheritance diagram for Flash:

[legend]

Public Member Functions
	Flash (void)

int	niter (void) const override
	return Flash iterations More...

void	prepare_Flash_residuals (void) override

Value	calculateResidualsPressure (void)

virtual Value	calculateResidualsFlashMode (void)

virtual void	clip_ (void)

int	calculateResiduals (std::vector< Value > &y, uint32_t offset) override

void	estimate (const Value &Pres, const Value &Temp) override

const Value &	Fraction (Libpf::Utility::PhaseIndex p, bool clip) const override
	during Flash iterations use this function to get the actual estimate of the fraction of phase p More...

Vector	X (Libpf::Utility::PhaseIndex p) const override

const Value &	Sumx (Libpf::Utility::PhaseIndex p) const override

void	estimateEquilibrium (const Value &Pres, const Value &Temp) override
	estimate equilibrium-related unknowns More...

SolverNleInterface *	solver (void) override

bool	converged (void) const override
	returns true if the flash has been solved successfully, More...

Public Member Functions inherited from ObjectiveNleAd
	ObjectiveNleAd (std::string t)
	constructor More...

double	xmin (unsigned int i)
	return the lower bound on unknown i More...

double	xmax (unsigned int i)
	return the upper bound on unknown i More...

unsigned int	size (void) const override
	returns the current size of the problem More...

void	scalex (double *x) override
	transforms the vector of "real" variables x by applying the scaling More...

void	unscalex (double *x) override
	transforms back the vector of scaled variables x by applying the unscaling More...

void	operator() (double , double , Jacobian *J) override
	implements the () operator by calling calculateResiduals; derived class may override it More...

void	addUnknown (Value *x, Scaler scaler, const std::string &tag)

void	changeUnknown (unsigned int i, Value *x, Scaler scaler, const std::string &tag)
	change the i-th unknown More...

void	addObjectiveFunction (ObjectiveNleAd &of)
	append the remote objective function More...

Public Member Functions inherited from ObjectiveNleAuto
	ObjectiveNleAuto (std::string t)
	constructor More...

virtual unsigned int	size (void) const
	returns the current size of the problem More...

bool	init (double *x)

void	setValue (unsigned int i, double x)
	copies the value for the i-th unknown from x in the Value pointed to, without altering the derivatives More...

void	copyresults (double *x)
	copies the unknown values from the x vector into the Values pointed to More...

void	inactivate (void)
	inactivates all unknowns More...

void	clearderivatives (void)
	clears the derivative information for all unknowns without setting to inactive More...

void	setActive (unsigned int i)
	activates the i-th unknown More...

void	scalex (double *) override
	transforms the vector of "real" variables x by applying the scaling More...

void	unscalex (double *x) override
	transforms back the vector of scaled variables x by applying the unscaling More...

void	operator() (double , double , Jacobian *J) override
	implements the () operator by calling calculateResiduals; derived class may override it More...

void	setx (unsigned int i, Value &x)
	sets the i-th unknown to x More...

const Value &	unknown (unsigned int i) const
	returns a reference to the i-th unknown More...

const std::string &	unknownTag (unsigned int i) const
	returns a reference to the tag of the i-th unknown More...

double	xmin (unsigned int i)
	return the lower bound on unknown i More...

double	xmax (unsigned int i)
	return the upper bound on unknown i More...

void	print (void) const
	lists unknowns More...

const std::string &	tagof (void) const
	returns the tag of the instance More...

void	settagof (std::string t)
	sets the tag of the instance More...

void	appendtagof (const std::string &t)
	appends to the tag of the instance More...

int	zero_residuals (std::vector< Value > &y, uint32_t offset)

virtual int	calculateResiduals (std::vector< Value > &y, uint32_t offset)=0

void	addUnknown (Value *x, const std::string &tag)

void	changeUnknown (unsigned int i, Value *x, const std::string &tag)
	change the i-th unknown More...

Public Member Functions inherited from ObjectiveNleInterface
	ObjectiveNleInterface (void)

virtual void	operator() (double x, double y, Jacobian *J)=0
	computes the objective function vector y at the point x and optionally the Jacobian J More...

virtual void	scalex (double *x)=0
	transforms the vector of "real" variables x by applying the scaling More...

virtual void	unscalex (double *x)=0
	transforms back the vector of scaled variables x by applying the unscaling More...

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

Public Member Functions inherited from FlashBase
	FlashBase (void)

void	setIdeal (bool i)

bool	isIdeal (void)

virtual SolverNleInterface *	solver (void)=0

virtual int	niter (void) const =0
	return Flash iterations More...

virtual void	estimate (const Value &Pres, const Value &Temp)=0

const Value &	Temperature (void) const

const Value &	Pressure (void) const

virtual const Value &	Fraction (Libpf::Utility::PhaseIndex p, bool clip=false) const =0
	during Flash iterations use this function to get the actual estimate of the fraction of phase p More...

virtual Vector	X (Libpf::Utility::PhaseIndex p) const =0

virtual const Value &	Sumx (Libpf::Utility::PhaseIndex p) const =0

virtual bool	converged (void) const =0
	returns true if the flash has been solved successfully, More...

Protected Member Functions
void	setFlash_ (const Libpf::Utility::FlashMode &fm, const Value &x, const Value &y, bool strict=true) override
	Set the stream's state variables and the Flash. More...

int	solveFlash (bool simultaneous, bool skip) override

std::string	message (int code) override

void	setup_ (std::vector< Value * > pbeta_, std::vector< const double * > pbetamin_, std::vector< const double * > pbetamax_) override

void	calculateInertSolids (const std::vector< Quantity > &totalx, std::vector< Quantity > &inertx, MutableVector fluidx, Value &inertfraction, Value &fluidfraction)

Protected Member Functions inherited from ObjectiveNleAd
void	prepare_ (double x, Jacobian J) override
	uscales x (unknowns) values from calling function and puts them in x_ Quantities More...

void	packResults_ (double x, double y, Jacobian *J)

	~ObjectiveNleAd ()

Protected Member Functions inherited from ObjectiveNleAuto
	~ObjectiveNleAuto ()

Protected Member Functions inherited from ObjectiveNleInterface
	~ObjectiveNleInterface ()

Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Protected Member Functions inherited from FlashBase
virtual	~FlashBase ()=default

virtual const Value &	calculateTotalP (const Value &rho) const =0

virtual const Value &	calculateTotalRho (void) const =0
	calculates total molar density for all phases in kmol/m3 More...

virtual const Value &	calculateTotalH (void) const =0
	calculates molar enthalpy for all phases in J/kmol based on current values of the hidden unknowns More...

virtual const Value &	calculateTotalS (void) const =0
	calculates molar entropy for all phases in J/kmol/K based on current values of the hidden unknowns More...

virtual void	prepare_residuals (void)=0

virtual void	prepare_Flash_residuals (void)=0

virtual int	calculateResidualsEos (std::vector< Value > &y, uint32_t offset)=0

virtual void	estimateEos (const Value &Pres, const Value &Temp)=0
	estimate eos roots-related unknowns More...

virtual int	calculateResidualsEquilibrium (std::vector< Value > &y, uint32_t offset)=0

virtual void	estimateEquilibrium (const Value &Pres, const Value &Temp)=0
	estimate equilibrium-related unknowns More...

virtual void	setFlash_ (const Libpf::Utility::FlashMode &fm, const Value &x, const Value &y, bool strict=true)=0
	Set the stream's state variables and the Flash. More...

virtual int	solveFlash (bool simultaneous, bool skip)=0

virtual std::string	message (int code)=0

virtual void	setup_ (std::vector< Value * > pbeta_, std::vector< const double * > pbetamin_, std::vector< const double * > pbetamax_)=0

Protected Attributes
Value	sumx_
	sum of molar fractions, or liquid phase molar fractions for multiphase derived classes More...

std::vector< Quantity > *	remotex_

SolverNle	NLEFlash_
	Newton solver for the Flash. More...

Protected Attributes inherited from ObjectiveNleAd
std::vector< Scaler >	scaler_
	provide scaling and unscaling More...

Protected Attributes inherited from ObjectiveNleAuto
std::vector< Value >	residuals
	Residuals. More...

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Protected Attributes inherited from FlashBase
Libpf::Utility::FlashMode	fm_

bool	zero_residuals_
	used to skip Flash residuals calculations if stream is empty More...

Value	T_
	Temperature, unknown. More...

Value	P_
	Pressure, unknown. More...

Value	Pset_
	specified pressure, Pa More...

Value	Tset_
	specified temperature, K More...

Value	Hset_
	specified molar enthalpy, J/kmol More...

Value	Sset_
	specified molar entropy, J/(kmol*K) More...

Value	rhoset_
	specified molar density, kmol/m3 More...

Additional Inherited Members
Public Attributes inherited from ObjectiveNleInterface
int	verbosityLocal

Detailed Description

single-phase Flash

#include <libpf/streams/Flash.h>

Remarks

Warning: Thread safe:; Extendable:; Platform dependencies:

Constructor & Destructor Documentation

◆ Flash()

Flash::Flash ( void )

Member Function Documentation

◆ calculateInertSolids()

void Flash::calculateInertSolids	(	const std::vector< Quantity > &	totalx,
		std::vector< Quantity > &	inertx,
		MutableVector	fluidx,
		Value &	inertfraction,
		Value &	fluidfraction
	)

protected

split away inert solids, for inert-solid containing Streams

Parameters

[in]	totalx	the molar fractions of the total phase
[out]	inertx	the molar fractions of the inert-solid containing phase
[out]	fluidx	the molar fractions of the fluid containing phase
[out]	inertfraction	the fraction of the inert-solid containing phase
[out]	fluidfraction	the fraction of the fluid containing phase

◆ calculateResiduals()

int Flash::calculateResiduals	(	std::vector< Value > &	y,
		uint32_t	offset
	)

overridevirtual

evaluates the residuals, placing them into the supplied vector at the given offset

Parameters

[out]	y	the vector of residuals to fill in
[in]	offset	the offset inside the vector of residuals

Returns: the number of evaluated residuals

Note: by contract, implementations should write some value in the y[offset] .. y[offset+returned:value-1] and leave the rest of the vector unchanged; if the objective function is designed to be solved by itself (i.e. not part of an assembly of objective functions, the offset parameter can be safely ignored

Implements ObjectiveNleAuto.

◆ calculateResidualsFlashMode()

virtual Value Flash::calculateResidualsFlashMode ( void )

virtual

Reimplemented in FlashVlT.

◆ calculateResidualsPressure()

Value Flash::calculateResidualsPressure ( void )

◆ clip_()

virtual void Flash::clip_ ( void )

virtual

clip unknowns within feasible reanges must be overridden when more unknowns are present

◆ converged()

bool Flash::converged ( void ) const

overridevirtual

returns true if the flash has been solved successfully,

See also: SolverNleInterface::nonConverged

Implements FlashBase.

◆ estimate()

void Flash::estimate	(	const Value &	Pres,
		const Value &	Temp
	)

overridevirtual

Estimates trivial unknowns; use only in sequential mode ! must be overridden when more unknowns are present

Implements FlashBase.

Reimplemented in FlashVl.

◆ estimateEquilibrium()

void Flash::estimateEquilibrium	(	const Value &	Pres,
		const Value &	Temp
	)

overridevirtual

estimate equilibrium-related unknowns

Implements FlashBase.

Reimplemented in StreamIapwsLiquidVapor, and StreamTwo< FlashVl >.

◆ Fraction()

const Value & Flash::Fraction	(	Libpf::Utility::PhaseIndex	p,
		bool	clip
	)		const

overridevirtual

during Flash iterations use this function to get the actual estimate of the fraction of phase p

Parameters

p	index of the phase
clip	whether to clip the fraction between 0 and 1

Implements FlashBase.

Reimplemented in FlashVl, and StreamOneSolid.

◆ message()

std::string Flash::message ( int code )

overrideprotectedvirtual

Implements FlashBase.

◆ niter()

int Flash::niter ( void ) const

overridevirtual

return Flash iterations

Implements FlashBase.

◆ prepare_Flash_residuals()

void Flash::prepare_Flash_residuals ( void )

inlineoverridevirtual

to be called before evaluating the residuals; implement in Flash or its subclasses; put any stream-specific initialization stuff here

Implements FlashBase.

Reimplemented in FlashVl, FlashVlT, and FlashVlTx.

◆ setFlash_()

void Flash::setFlash_	(	const Libpf::Utility::FlashMode &	fm,
		const Value &	x,
		const Value &	y,
		bool	strict = `true`
	)

overrideprotectedvirtual

Set the stream's state variables and the Flash.

Implements FlashBase.

Reimplemented in FlashLlTx, and FlashVlT.

◆ setup_()

void Flash::setup_	(	std::vector< Value * >	pbeta_,
		std::vector< const double * >	pbetamin_,
		std::vector< const double * >	pbetamax_
	)

overrideprotectedvirtual

set unknowns, solver sizes

Parameters

pbeta_	vector of pointers to the phase betas
pbetamin_	vector of pointers to the minimum allowable beta for the phases
pbetamax_	vector of pointers to the maximum allowable beta for the phases

Implements FlashBase.

Reimplemented in FlashVl, and FlashVlTx.

◆ solveFlash()

int Flash::solveFlash	(	bool	simultaneous,
		bool	skip
	)

overrideprotectedvirtual

solve the flash if !simultaneous, only calls calculateResiduals if simultaneous

Parameters

simultaneous	used if the flash is to solved during a simultaneous resolution of a larger set of equations
skip	skip flash calculation and force the residuals to zero; used for streams with negligible flow

Implements FlashBase.

◆ solver()

SolverNleInterface * Flash::solver ( void )

overridevirtual

Implements FlashBase.

◆ Sumx()

const Value & Flash::Sumx ( Libpf::Utility::PhaseIndex p ) const

overridevirtual

during Flash iterations use this function to get the actual estimate of the sum of molar fractions for phase p

Implements FlashBase.

Reimplemented in FlashVl.

◆ X()

Vector Flash::X ( Libpf::Utility::PhaseIndex p ) const

overridevirtual

during Flash iterations use this function to get the actual estimate of the molar fractions for phase p

Implements FlashBase.

Reimplemented in FlashVl, and StreamOneSolid.

Member Data Documentation

◆ NLEFlash_

SolverNle Flash::NLEFlash_

mutableprotected

Newton solver for the Flash.

◆ remotex_

std::vector<Quantity>* Flash::remotex_

protected

◆ sumx_

Value Flash::sumx_

protected

sum of molar fractions, or liquid phase molar fractions for multiphase derived classes

The documentation for this class was generated from the following file:

Flash.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Flash()

Member Function Documentation

◆ calculateInertSolids()

◆ calculateResiduals()

◆ calculateResidualsFlashMode()

◆ calculateResidualsPressure()

◆ clip_()

◆ converged()

◆ estimate()

◆ estimateEquilibrium()

◆ Fraction()

◆ message()

◆ niter()

◆ prepare_Flash_residuals()

◆ setFlash_()

◆ setup_()

◆ solveFlash()

◆ solver()

◆ Sumx()

◆ X()

Member Data Documentation

◆ NLEFlash_

◆ remotex_

◆ sumx_
