Libpf::User::KernelImplementation Struct Reference

Describes the capabilities of a service / standalone kernel for a specific simulation domain. More...

#include <Kernel.h>

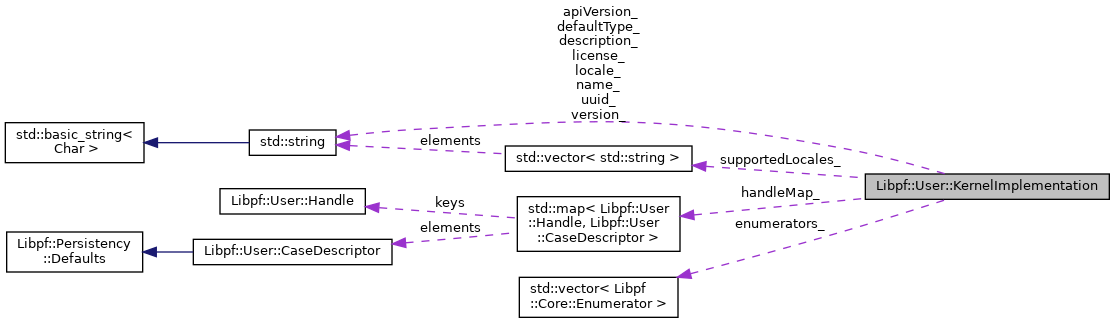

Collaboration diagram for Libpf::User::KernelImplementation:

Public Member Functions
	KernelImplementation (const std::string &name, const std::string &description, const std::string &license, const std::string &version, const std::string &defaultType, const std::string &uuid)
	~KernelImplementation (void)

Public Attributes
std::string	name_
	UTF-8 encoded string; acts as URN in the kernel: namespace. More...
std::string	description_
	UTF-8 encoded string. More...
std::string	license_
	UTF-8 encoded string. More...
std::string	version_
	UTF-8 encoded string. More...
std::string	apiVersion_
	UTF-8 encoded string. More...
std::string	defaultType_
std::string	uuid_
	service UUID (Universally Unique Identifier), uniquely identifies a specific service + service version More...
bool	valid_
std::map< Libpf::User::Handle, Libpf::User::CaseDescriptor >	handleMap_
	maps handles to the internal data structure that holds all the information to restore the state of a case More...
std::vector< std::string >	supportedLocales_
std::string	locale_
std::vector< Libpf::Core::Enumerator >	enumerators_

Detailed Description

Describes the capabilities of a service / standalone kernel for a specific simulation domain.

knows the available model types and enumerators that can be used to instantiate Cases; can instantiate a Case and return a Handle to Case instances; only the lifecycle of a Kernel coincides with the time the executable / scripting session is alive; therefore the Kernel object methods are exposed as global functions; a global impl_ object of type KernelImplementation must be provided by a service / standalone kernel

Constructor & Destructor Documentation

KernelImplementation()

Libpf::User::KernelImplementation::KernelImplementation	(	const std::string &	name,
		const std::string &	description,
		const std::string &	license,
		const std::string &	version,
		const std::string &	defaultType,
		const std::string &	uuid
	)

~KernelImplementation()

Libpf::User::KernelImplementation::~KernelImplementation

(

void

)

Member Data Documentation

apiVersion_

std::string Libpf::User::KernelImplementation::apiVersion_

UTF-8 encoded string.

defaultType_

std::string Libpf::User::KernelImplementation::defaultType_

UTF-8 encoded string

description_

std::string Libpf::User::KernelImplementation::description_

UTF-8 encoded string.

enumerators_

std::vector<Libpf::Core::Enumerator> Libpf::User::KernelImplementation::enumerators_

handleMap_

std::map<Libpf::User::Handle, Libpf::User::CaseDescriptor> Libpf::User::KernelImplementation::handleMap_

maps handles to the internal data structure that holds all the information to restore the state of a case

license_

std::string Libpf::User::KernelImplementation::license_

UTF-8 encoded string.

locale_

std::string Libpf::User::KernelImplementation::locale_

name_

std::string Libpf::User::KernelImplementation::name_

UTF-8 encoded string; acts as URN in the kernel: namespace.

supportedLocales_

std::vector<std::string> Libpf::User::KernelImplementation::supportedLocales_

uuid_

std::string Libpf::User::KernelImplementation::uuid_

service UUID (Universally Unique Identifier), uniquely identifies a specific service + service version

valid_

bool Libpf::User::KernelImplementation::valid_

version_

std::string Libpf::User::KernelImplementation::version_

UTF-8 encoded string.

---

The documentation for this struct was generated from the following file:

• libpf/user/Kernel.h
